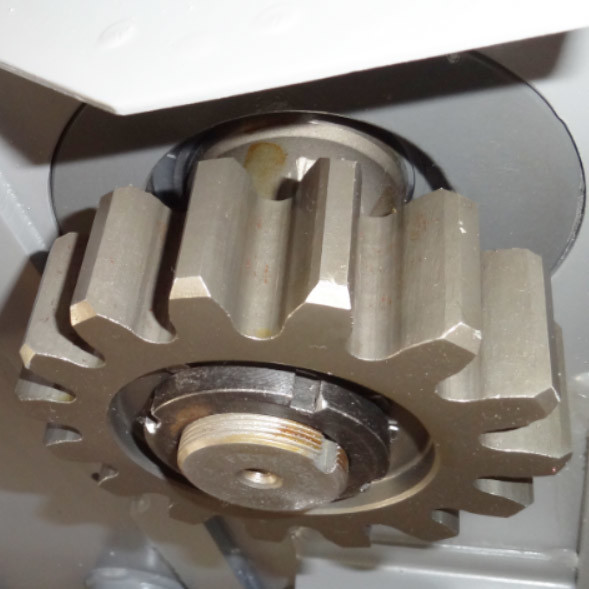

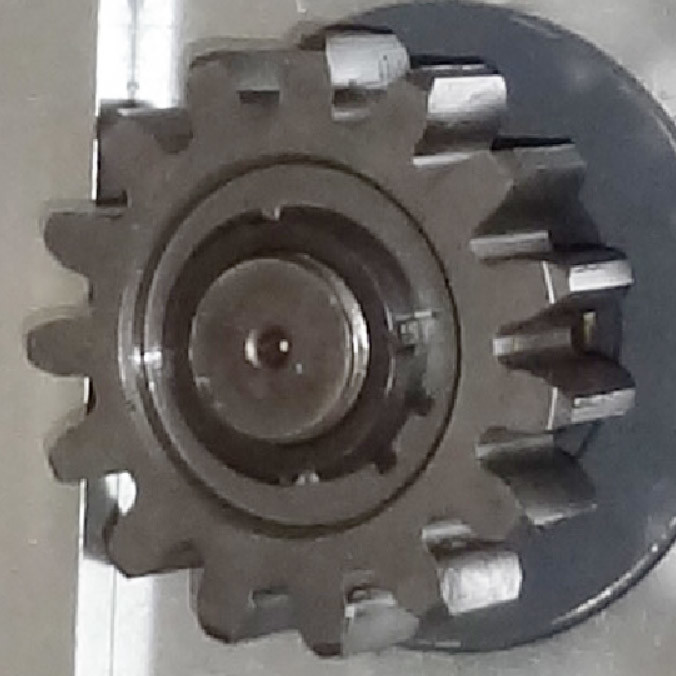

M8 Drive Pinion For Construction Elevator Quenching And Nitriding Treatment
| Place of Origin | China |
|---|---|
| Certification | TUV |
| Model Number | SC100, SC150, SC200, SC300, SC320 |
| Minimum Order Quantity | 10 PCS |
| Packaging Details | Carton or Recycled wooden box, pallet |
| Delivery Time | 5-7 days |
| Payment Terms | T/T before shipment |
| Supply Ability | 5000 per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Hoist, Construction Elevator | Packaging | Carton, Recycled Wooden Box, Pallet |
|---|---|---|---|
| Size | Standard | MOQ | 10 Pieces |
| Structure | Integrated | Material | 40Cr Steel |
| Highlight | M8 Drive Pinion,Construction Elevator Drive Pinion,Quenching Construction Hoist Drive Pinion |
||
Product Description
Product Description:
Hoist Pinion and Rollers are specially designed for construction elevators and builder hoists. They are made of high-quality materials and have a round shape. The color choices are silver, grey, and black. The heat treatment includes quenching and nitriding treatments, as well as medium frequency quenching. These hoist pinion and rollers come with various packaging options such as carton, recycled wooden box, and pallet. They are highly reliable, durable, and ideal for construction elevator and hoist applications.
Features:
- Product Name: Hoist Pinion JL M8 nitrided
- Surface Treatment: Quenching And Nitriding Treatment, Medium Frequency Quenching, Blacken
- Material: 40Cr Steel
- Size: Standard
- Applicable:Widely used in Chinese brand construction lifts, with good commonality.
- Structure: Integrated
- Special Feature: Passenger and Material Hoist Pinion, Construction Elevator, Drive Pinion for Rack Pinion Lift, Hoist Pinion Rollers
Technical Parameters:
| Dimensions (mm) | |||
| Pinion height (H) | 52 | Common normal line (W) | 37.1 |
| Teeth thickness (S) | 45 | Spline length (L) | 42 |
| Teeth number (z) | 15 | Spline width (B) | 14 |
| Modulus (m) | 8 | Spline diameter (D) | Φ55 |
| Teeth profile angle (α) | 20° | Spline diameter (d) | Φ50 |
| Modification coefficient (x) | 0 | Spline number (N) | 6 |
Applications:
Hoist Pinion and Rollers
Hoist Pinion and Rollers are widely used in passenger and material hoisting systems. Our products are available in a variety of models, including SC100, SC150, SC200, SC300, and SC320. Manufactured with steel, these hoist pinion and rollers are available in silver, grey, and black. Moreover, they are heat treated with quenching and nitriding treatment or medium frequency quenching for superior performance and extended service life.
Our Hoist Pinion and Rollers come with TUV certification and are shipped in carton or recycled wooden box or pallet. We strive to deliver our products within 5-7 days and accept T/T payment before shipment. With these Hoist Pinion and Rollers, you can be sure of worry-free operation of your construction elevator.
