Modulus 8 Standard Drive Pinion For Construction Site Material Hoist JL M8 Nitrided
| Place of Origin | China |
|---|---|
| Certification | TUV |
| Model Number | SC100, SC150, SC200, SC300, SC320 |
| Packaging Details | Carton or Recycled wooden box, pallet |
| Delivery Time | 5-7 days |
| Payment Terms | T/T before shipment |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Silver, Grey, Black | Surface Treatment | Quenching And Nitriding Treatment, Medium Frequency Quenching, Blacken |
|---|---|---|---|
| Shape | Round | Material | Steel |
| Structure | Integrated | Packaging | Carton, Recycled Wooden Box, Pallet |
| Application | Hoist, Construction Elevator | Size | Standard |
| Highlight | Modulus 8 Standard Drive Pinion,Construction Site Hoist Drive Pinion,Nitrided Hoist Drive Pinion |
||
Product Description

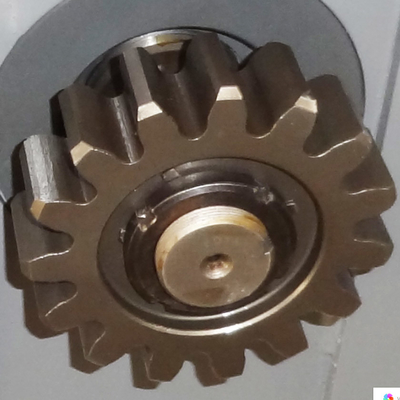

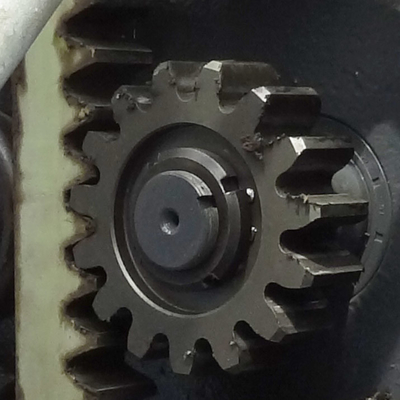

Modulus 8 Standard Drive Pinion For Construction Site Material Hoist JL M8 Nitrided
Product Description:
JL M8 Hoist Pinion And Rollers, made of high strength steel material, are available in standard size with quenching and nitriding treatment, or medium frequency quenching. They are designed for construction elevator and hoist, with a minimum order quantity of 10 pieces. The pinions are used as drive pinion for passenger and material hoist.
Features:
- Product Name: Hoist Drvie Pinion
- Model: JL M8 nitrided
- Surface Treatment: Quenching And Nitriding Treatment
- Color: Silver, Grey, Black
- Packaging: Carton, Recycled Wooden Box, Pallet
- Application:builder hoist, construction hoist, rack pinion hoist pinion, construction elevator
Technical Parameters:
| Dimensions (mm) | |||
| Pinion height (H) | 52 | Common normal line (W) | 37.1 |
| Teeth thickness (S) | 45 | Spline length (L) | 42 |
| Teeth number (z) | 15 | Spline width (B) | 14 |
| Modulus (m) | 8 | Spline diameter (D) | Φ55 |
| Teeth profile angle (α) | 20° | Spline diameter (d) | Φ50 |
| Modification coefficient (x) | 0 | Spline number (N) | 6 |
Applications:
Hoist Pinion And Rollers are used in a variety of applications, from construction hoists to passenger and material hoists. Our Hoist Pinion And Rollers are available in a range of sizes, shapes and materials. Our hoist pinion and rollers come in standard size, round shape and steel material, and are certified by TUV. We offer model numbers SC100, SC150, SC200, SC300 and SC320. Minimum Order Quantity (MOQ) is 10 pieces. We provide packaging for our products in carton or recycled wooden box, pallet. Our production time is 5-7 days. Payment terms are T/T before shipment. We have our hoist pinion and rollers produced in China.
Support and Services:
We offer our customers a wide range of technical support and services for our Construction Hoist and its Parts, e.g. pinion, rollers, counter rollers, electrical appliances, ties and so on, . Our services include installation, maintenance, repair, and troubleshooting guides and support.
Our team of experts is available 24/7 to provide customers with prompt and reliable service. We ensure that all our products are installed correctly and are functioning properly. We also offer regular maintenance services to ensure that our products are working efficiently at all times.
In addition, we offer troubleshooting services to identify and solve any issues that may arise with our products. We are committed to providing our customers with the highest level of technical support and service.
