40Cr Steel Construction Hoist Drive Pinion Quenching And Nitriding
| Place of Origin | China |
|---|---|
| Certification | TUV |
| Model Number | SC100, SC150, SC200, SC300, SC320 |
| Minimum Order Quantity | 10 pcs |
| Packaging Details | Carton or Recycled wooden box, pallet |
| Delivery Time | 5-7 days |
| Payment Terms | T/T before shipment |
| Supply Ability | 5000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | 15 Teeth | MOQ | 10 Pieces |
|---|---|---|---|
| Surface Treatment | Quenching And Nitridement | Application | Rack Pinion Hoist, Construction Elevator, Material Hoist |
| Material | 40Cr Steel | Heat Treatment | Quenching And Nitriding Treatment |
| Modulus | 8 | ||
| Highlight | Construction Hoist Drive Pinion,40Cr Steel Hoist Drive Pinion,Quenching Hoist Drive Pinion |
||
Product Description
40Cr Steel Construction Hoist Drive Pinion Quenching And Nitridement
Product Description:

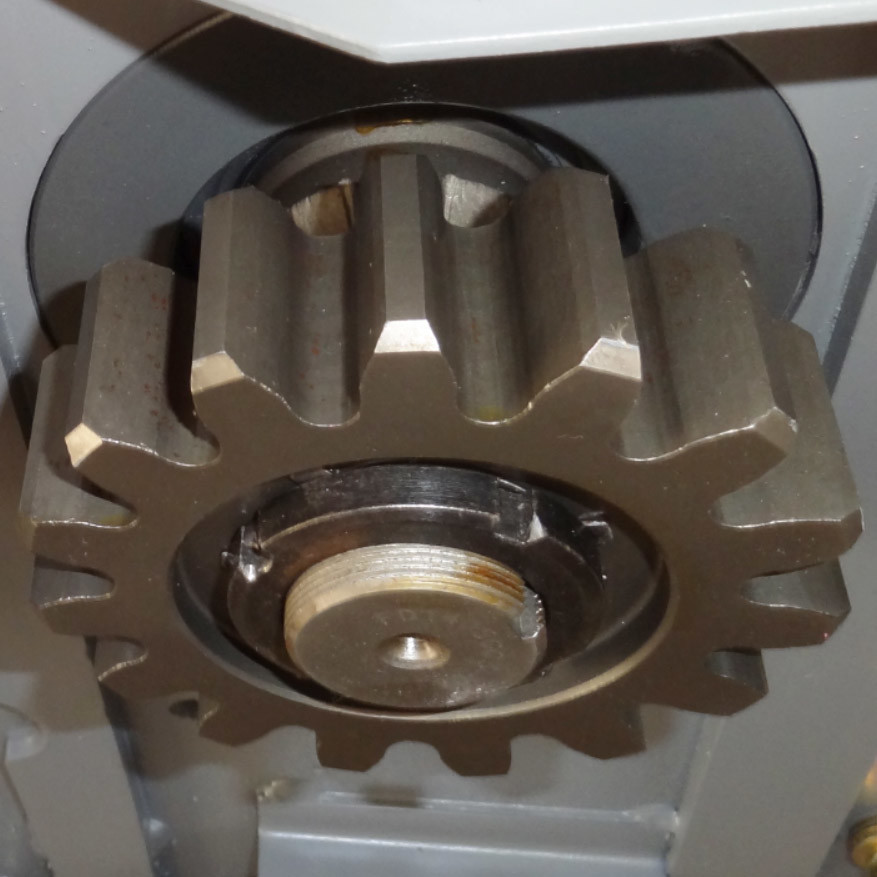

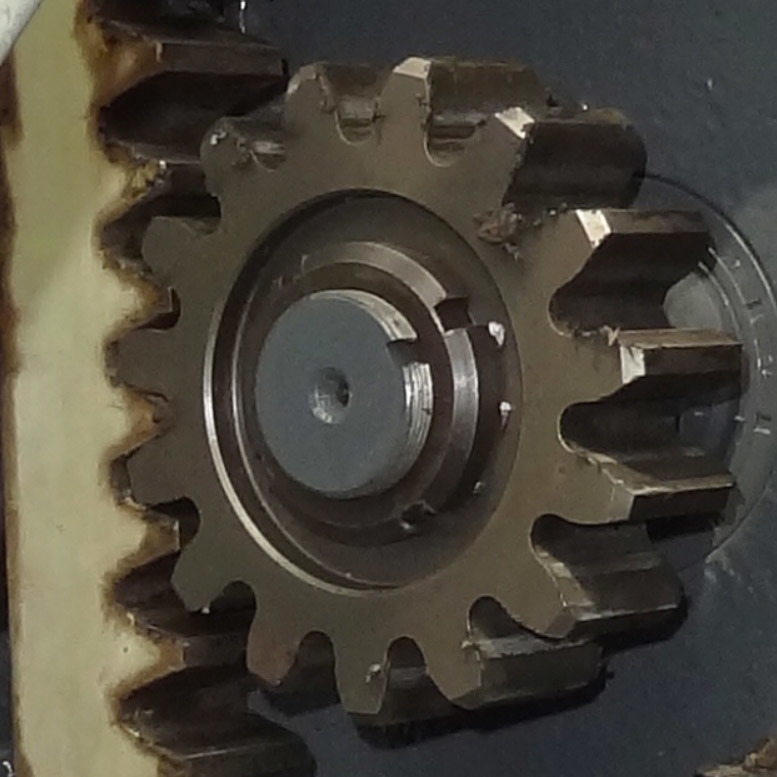

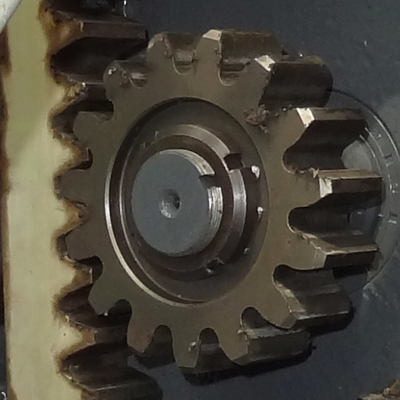

Hoist Pinion And Rollers are essential components for rack and pinion elevator. They are made of high strength 40Cr steel, which is treated by quenching and nitriding treatment, or medium frequency quenching and blacken.
The surface of the pinion is silver, grey, or black, and the pinion shape is 15 teeth with standard size. It is suitable for the pinion of contruction lift, rack and pinion elevator, and material hoists.
Features:
Made of 40Cr steel
Finish: Quenching and nitriding treatment
Gear hardness (Rockwell hardness): surface 60 HRC, core 42 HRC
Widely used in Chinese brand construction lifts, with good commonality.
Technical Parameters:
| Dimensions (mm) | |||
| Pinion height (H) | 52 | Common normal line (W) | 37.1 |
| Teeth thickness (S) | 45 | Spline length (L) | 42 |
| Teeth number (z) | 15 | Spline width (B) | 14 |
| Modulus (m) | 8 | Spline diameter (D) | Φ55 |
| Teeth profile angle (α) | 20° | Spline diameter (d) | Φ50 |
| Modification coefficient (x) | 0 | Spline number (N) | 6 |
Applications:
Hoist pinion and rollers are a specialized type of drive pinion used in construction elevators. The model numbers available include SC100, SC150, SC200, SC300, and SC320. The material used is steel, and the surface treatment can be quenching and nitriding treatment, medium frequency quenching, and blackening. The products are available in silver, grey, and black colors. The products are TUV certified for quality and safety, and the packaging is available in carton or recycled wooden box, pallet. The delivery time is 5–7 days, and payment terms are T/T before shipment.
Hoist pinion and rollers are widely used in hoist and construction elevator. They have superior performance, with heat treatment such as quenching and nitriding treatment, medium frequency quenching, and blackening. The products are of superior quality and safety, certified with TUV certification. They come in various model numbers, and surface treatments, with options of silver, grey, and black. The packaging is also available in carton or recycled wooden box, pallet. The delivery time is 5–7 days, and payment terms are T/T before shipment.
Support and Services:
We provide technical support and service for the users of Rack and Pinion Construction lifts. Our support team is available 24/7 to answer any questions you may have. We also provide ongoing maintenance and repairs for our construction hoists as well as troubleshooting and installation advice.
Our team also offers technical training and product instruction to ensure that you get the most out of your Pinion and Pinion Construction Hoist purchase.
Packing and Shipping:
Packaging and Shipping
Hoist Pinion And Rollers will be packaged in a safe and secure manner to ensure that they arrive to the customer in the best condition possible.
The product will be securely bubble wrapped and placed in a cardboard box. The box will be labeled with the customer’s name and address so that it can be easily identified. The box will then be placed on a pallet with other customer orders and shipped via a trusted carrier.
All shipping information will be provided to the customer including tracking numbers, delivery dates, and estimated time of arrival.
