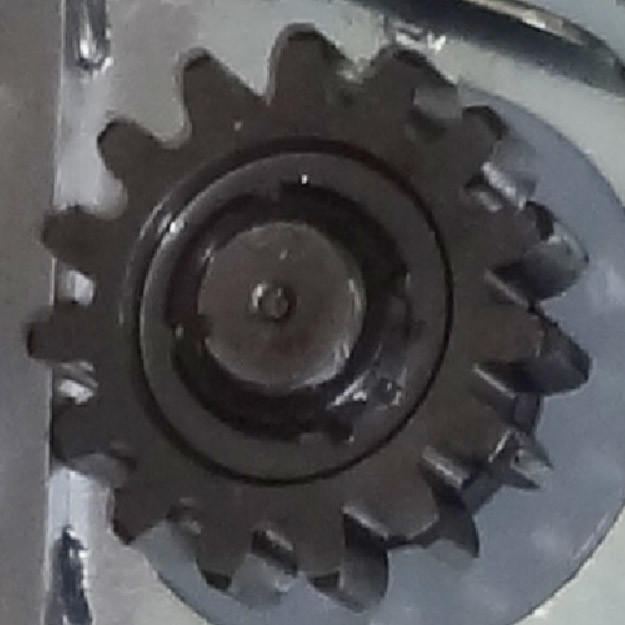

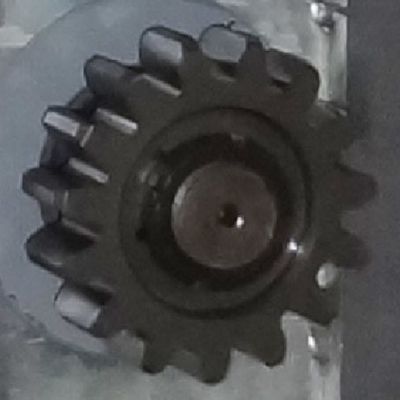

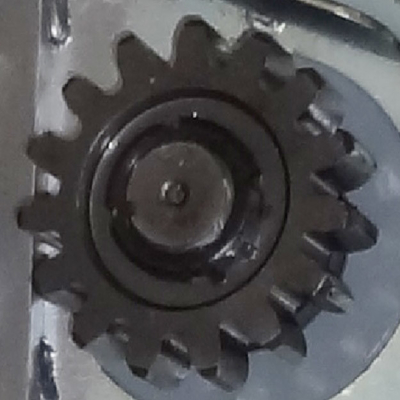

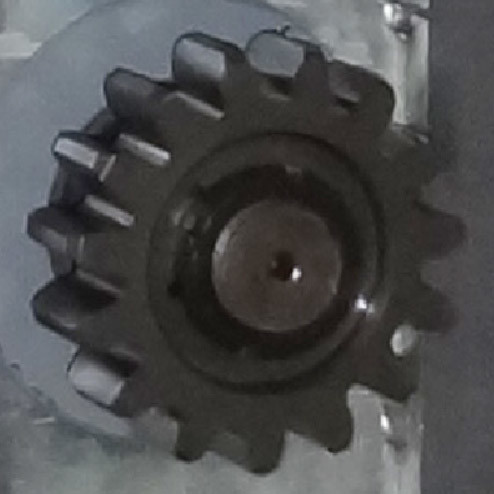

JL M8 Drive Pinion Of Rack And Pinon Construction Hoist Lift
| Place of Origin | China |
|---|---|
| Certification | TUV |
| Model Number | SC100, SC150, SC200, SC300, SC320 |
| Packaging Details | Carton or Recycled wooden box, pallet |
| Delivery Time | 5-7 days |
| Payment Terms | T/T before shipment |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Round | Packaging | Carton, Recycled Wooden Box, Pallet |
|---|---|---|---|
| Color | Silver, Grey, Black | Surface Treatment | Quenching And Nitriding Treatment, Medium Frequency Quenching, Blacken |
| Size | Standard | MOQ | 10 Pieces |
| Heat Treatment | Quenching And Nitriding Treatment, Medium Frequency Quenching | Material | 40Cr Steel |
| Highlight | Rack And Pinion Drive Pinion,Construction Hoist Lift Drive Pinion,Construction Hoist Drive Pinion |
||
Product Description
JL M8 High Quality Drive Pinion Of Rack And Pinon Construction Hoist Lift
Product Description:
Hoist Pinion and Rollers are drive pinion for rack pinion lift and contruction lift, which are mainly used to transfer the power from electric motor to lift. The pinion is made of high quality steel material with structure of integrated, and surface treatment of quenching and nitriding treatment, medium frequency quenching, blacken, etc. It's available in standard size, and with different colors such as silver, grey and black.
Features:
- Product Name: Builders Hoist Drive Pinion
- Heat Treatment: Quenching And Nitriding Treatment, Medium Frequency Quenching
- Material: Made of 40Cr steel
- Surface Treatment: Medium Frequency Quenching, Blacken
- Color: Black
- Application: Passenger and Material Hoist Pinion, Hoist, Construction Elevator
- Widely used in Chinese brand construction lifts, with good commonality.
Technical Parameters:
| Dimensions (mm) | |||
| Teeth height (H) | 52 | Common normal line (W) | 37.1 |
| Teeth thickness (S) | 45 | Spline length (L) | 42 |
| Teeth number (z) | 15 | Spline width (B) | 14 |
| Modulus (m) | 8 | Major diameter of spline (D) | Φ55 |
| Teeth shape angle (α) | 20° | Major diameter of spline (d) | Φ50 |
| Modification coefficient (x) | 0 | Spline number (N) | 6 |
Applications:
Hoist pinion and rollers are widely used in a variety of applications and scenarios. Model SC100, SC150, SC200, SC300, SC320 are manufactured by Chinese manufacturer with TUV certification and the surface is treated with quenching and nitriding treatment, medium frequency quenching, blacken, and the color could be silver, grey or black.
The size is standard and the packaging is usually carton, recycled wooden box or pallet. Heat treatment is also available such as quenching and nitriding treatment, medium frequency quenching.
The delivery time is 5-7 days and the payment terms is T/T before shipment. Hoist pinion and rollers are commonly used in rack and pinion elevators, passenger and material hoist pinion, etc.
