JL M8 Nitrided Drive Hoist Pinion Standard Size With Good Commonality
| Place of Origin | China |
|---|---|
| Certification | TUV |
| Model Number | SC100, SC150, SC200, SC300, SC320 |
| Minimum Order Quantity | 10 pcs |
| Packaging Details | Carton or Recycled wooden box, pallet |
| Delivery Time | 5-7 days |
| Payment Terms | T/T before shipment |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | Pinion Height (H): 52mm | Surface Treatment | Quenching And Nitriding Treatment |
|---|---|---|---|
| Application | Hoist, Construction Elevator | Heat Treatment | Quenching And Nitriding Treatment, Medium Frequency Quenching |
| Packaging | Carton, Recycled Wooden Box, Pallet | Shape | Round |
| Highlight | Nitrided Drive Hoist Pinion,JL M8 Hoist Pinion,Standard Nitrided Drive Hoist Pinion |
||
Product Description

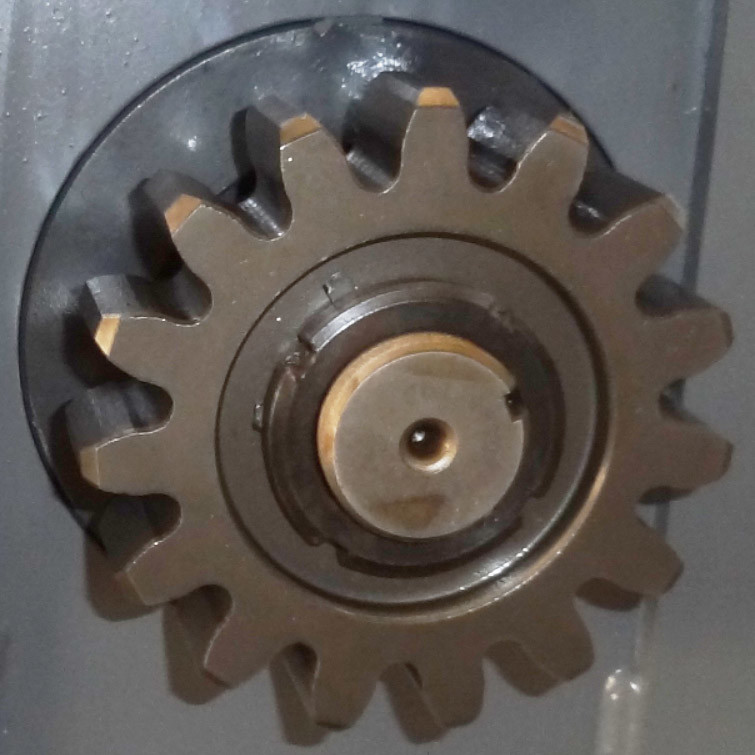

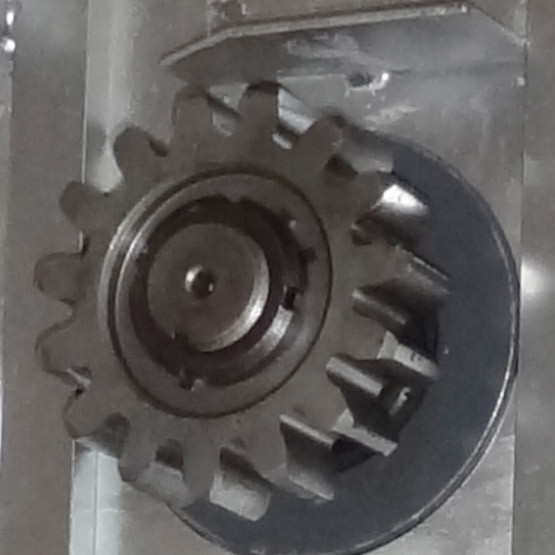

JL M8 Nitrided Drive Hoist Pinion Standard Size With Good Commonality
Product Description:
Hoist Pinion And Rollers are high quality rack and pinion elevator components that are used to transport passengers and materials in the construction industry. Our hoist pinion and rollers are made of premium materials and have undergone heat treatment such as quenching and nitriding treatment, and medium frequency quenching. These hoist pinion and rollers come in a round shape and have an integrated structure. With a minimum order quantity of 10 pieces, our hoist pinion and rollers are packaged in cartons, recycled wooden boxes, and pallets.
We offer exceptional quality and durability for our hoist pinion and rollers, so you can rely on them for your builder hoist pinion and roller needs. Our hoist pinion and rollers are the perfect choice for your construction projects, providing you with reliable and efficient performance.
Features:
- Product Name: JL M8 Hoist Pinion
- Material: Made of 40Cr steel
- Heat Treatment: Quenching And Nitriding Treatment, Medium Frequency Quenching
- Made of 40Cr steel
- Pinion height (H): 52mm, Teeth thickness (S): 45
- Surface Treatment: Quenching And Nitriding Treatment
- Widely used in Chinese brand construction lifts, with good commonality.
| Dimensions (mm) | |||
| Pinion height (H) | 52 | Common normal line (W) | 37.1 |
| Teeth thickness (S) | 45 | Spline length (L) | 42 |
| Teeth number (z) | 15 | Spline width (B) | 14 |
| Modulus (m) | 8 | Spline diameter (D) | Φ55 |
| Teeth profile angle (α) | 20° | Spline diameter (d) | Φ50 |
| Modification coefficient (x) | 0 | Spline number (N) | 6 |
Applications:
Hoist pinion and rollers are extensively used in drive pinion for rack pinion lift, construction elevator, passenger and material hoist pinion. Our hoist pinion and rollers are made of high-quality steel and feature a quenching and nitriding treatment, medium frequency quenching, blacken, and a surface treatment for a longer service life. Our available models include SC100, SC150, SC200, SC300, and SC320. All products are certified by TUV and are delivered within 5-7 days after payment. Packages include carton or recycled wooden boxes and pallets.
