The Counter Rollers For Rack And Pinion Passenger And Material Hoists Jianglu Type
| Place of Origin | China |
|---|---|
| Brand Name | COMWINNING |
| Model Number | φ125 * 52 mm |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Corrosion Resistance | High | Cost | Affordable |
|---|---|---|---|
| Durability | Long-lasting | Load Capacity | Heavy |
| Maintenance | Low | Material | Steel |
| Noise Level | Low | Packaging | Safe |
| Shape | Round | Tolerance | High |
| Highlight | Passenger And Material Hoists Rollers,Rack And Pinion Counter Rollers,Material Hoists Counter Rollers |
||
Product Description

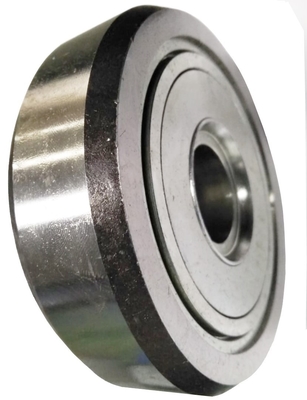

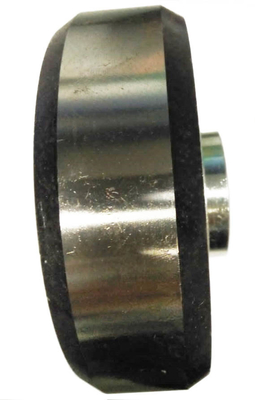

The Counter Rollers For Rack And Pinion Passenger And Material Hoists Jianglu Type
Brief
The counter rollers serve as counter-pressure to the pinions of drive device and anti-drop safety device, preventing them from jumping off the racks.
Features:
Using high quality carbon structural steel materials
Blacken or galvanization on the surface
Finish: Blackening or galvanizing
Durability
Fine finish
Reliable
Technical Data
| Jianglu counter roller Dimensions(mm) | |||||
| Outer diameter (D) | φ125 | Counter roller step diameter/ Eccentric inner hole (d) | φ45 | ||
| Assembly total height (L) | 52 | Eccentric sleeve thickness (h) | 22 | ||
| Counter roller assembly total height (H) | 42 | Eccentric sleeve step height (t) | 12 | ||
| Counter roller thickness (S) | 36 | Eccentric sleeve step diameter (d1) | φ60 | ||
| Bolt hole | φ21 | Offset (P) | 3 | ||
| Counter roller step height (T) | 15 | Gasket diameter (d2) | φ54 | ||
