Rack And Pinion Construction Site Passenger And Material Lift Counter Roller New GJJ Type
| Place of Origin | China |
|---|---|
| Brand Name | COMWINNING |
| Model Number | φ125 * 75 mm |
| Minimum Order Quantity | 10 pcs |
| Packaging Details | Carton |
| Delivery Time | 5-8 week days |
| Payment Terms | T/T |
| Supply Ability | 5000 per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Rack And Pinion Hoist | Color | Silver Or Black |
|---|---|---|---|
| Material | Steel | Package | Carton |
| Size | Standard | Surface Treatment | Blackening Or Galvanizing |
| Highlight | Passenger Material Lift Counter Roller,GJJ Type Lift Counter Roller,Blackening Construction Hoist Roller |
||
Product Description

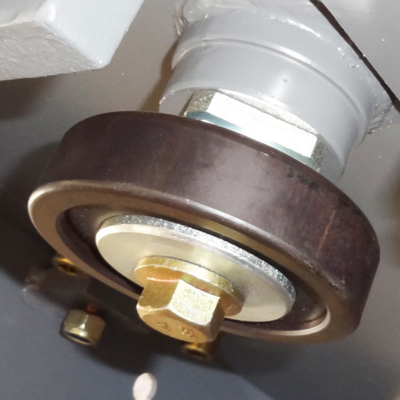

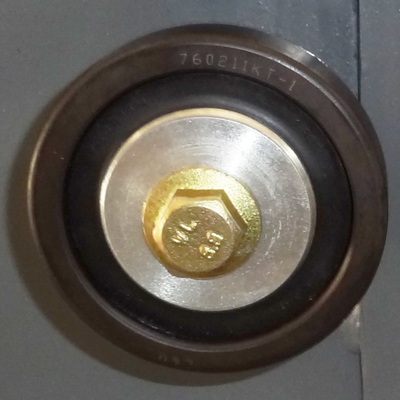

Rack And Pinion Construction Site Passenger And Material Lift Counter Roller New GJJ Type
Applications
Serve as counter-pressure to the pinions of construction lifts' drive device and anti-drop safety device, preventing them from jumping off the racks.
Features
Using high quality carbon structural steel materials
Blacken or galvanization on the surface
Finish: Blackening or galvanizing
Mainly used in GJJ builder hoists.
| Dimensions(mm) | |||||
| Outer diameter (D) | φ125 | Counter roller step diameter/ Eccentric inner hole (d) | φ45 | ||
| Assembly total height (L) | 75 | Eccentric sleeve thickness (h) | 25 | ||
| Counter roller assembly total height (H) | 62 | Eccentric sleeve step height (t) | 12 | ||
| Counter roller thickness (S) | 40 | Eccentric sleeve step diameter (d1) | φ60 | ||
| Bolt hole | φ25 | Offset (P) | 3 | ||
| Counter roller step height (T) | 24 | Gasket diameter (d2) | φ70 | ||
