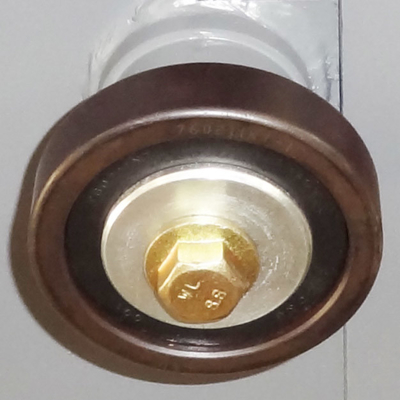

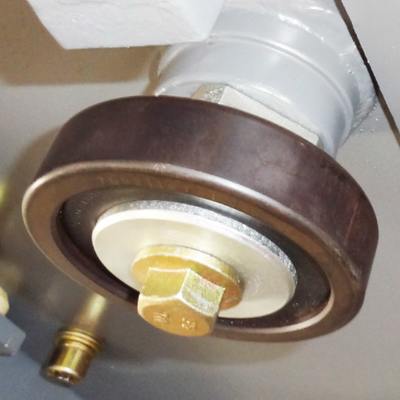

Rack And Pinion Construction Lift Passenger And Material Hoist Counter Roller GJJ Type
| Place of Origin | China |
|---|---|
| Brand Name | COMWINNING |
| Model Number | φ125 * 75 mm |
| Minimum Order Quantity | 10 pcs |
| Packaging Details | Carton |
| Delivery Time | 5-8 week days |
| Payment Terms | T/T |
| Supply Ability | 5000 per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Hoist | Color | Silver Or Black |
|---|---|---|---|
| Material | Steel | Package | Carton Box |
| Processing Technology | CNC Machining | Shape | Round |
| Surface Treatment | Blackening Or Galvanizing | ||
| Highlight | Material Hoist Counter Roller,Rack And Pinion Construction Roller,GJJ Type Hoist Counter Roller |
||
Product Description
Rack And Pinion Construction Lift Passenger And Material Hoist Counter Roller New GJJ Type
Applications
On SC100, SC150, SC200, SC300 construction site rack and pinion hoists. Serve as counter-pressure to the pinions of construction lifts' drive device and anti-drop safety device, preventing them from jumping off the racks.
Features
Using high quality carbon structural steel materials
Blacken or galvanization on the surface
Finish: Blackening or galvanizing
Mainly used in GJJ builder hoists.
Technical Data
| Dimensions(mm) | |||||
| Outer diameter (D) | φ125 | Counter roller step diameter/ Eccentric inner hole (d) | φ45 | ||
| Assembly total height (L) | 75 | Eccentric sleeve thickness (h) | 25 | ||
| Counter roller assembly total height (H) | 62 | Eccentric sleeve step height (t) | 12 | ||
| Counter roller thickness (S) | 40 | Eccentric sleeve step diameter (d1) | φ60 | ||
| Bolt hole | φ25 | Offset (P) | 3 | ||
| Counter roller step height (T) | 24 | Gasket diameter (d2) | φ70 | ||
