Roller Of Passenger And Material Hoist 650x650x1508mm Mast JingGang Type
| Place of Origin | China |
|---|---|
| Brand Name | Comwinning |
| Model Number | SC200, SC200, SC300 |
| Minimum Order Quantity | 10pcs |
| Price | Negotiate in USD |
| Packaging Details | Carton |
| Delivery Time | 5-8 days |
| Payment Terms | T/T |
| Supply Ability | 5000 per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Rack And Pinion Hoist | Color | Silver, Black |
|---|---|---|---|
| Durability | Long-lasting | Hardness | High |
| Material | Steel | Wear Resistance | High |
| Highlight | 650x650x1508mm Hoist Roller,Steel Material Hoist Roller,Mast JingGang Type |
||
Product Description
Roller Of Passenger And Material Hoist 650x650x1508mm Mast JingGang Type

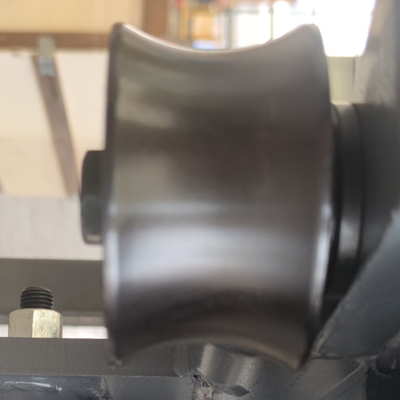

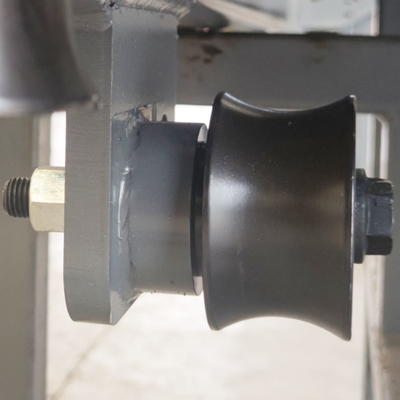

The roller is for 650*650*1508mm mast section of rack and pinion lifts. The eccentric roller for can be adjusted to the right position, then the construction hoist can move up and down smoothly.
Features
Use dustproof cover
Use dust caps on the nozzle
Finish: Blackening or galvanizing
Technical Data
| Dimensions (mm) | |||
| Big diameter (D) | Φ88 | Step height (h) | 5 |
| Small diameter (d) | Φ74 | Bearing width (Assembly height) (L) | 29.5-33.5 (4) (shifting) |
| Roller thickness(H) | 49 | Eccentricity (P) | 5 |
| Arc ( R ) | R39 | Internal thread (M) | M16 |
| Step outer diameter | Φ40 | ||
