Rack And Pinion Construction Lift Passenger And Material Hoist M20 Roller
| Place of Origin | China |
|---|---|
| Brand Name | Comwinning |
| Model Number | SC200, SC200, SC300 |
| Minimum Order Quantity | 10pcs |
| Price | Negotiate in USD |
| Packaging Details | Carton |
| Delivery Time | 5-8 days |
| Payment Terms | T/T |
| Supply Ability | 5000 per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Hoisting Machine SC200 SC300 | Color | Silver Or Black |
|---|---|---|---|
| Corrosion Resistance | High | Durability | High |
| Hardness | High | Load Capacity | High |
| Material | Steel | Size | Standard |
| Surface Treatment | Blackening Or Galvanizing | ||
| Highlight | Passenger And Material Hoist Roller,Rack And Pinion Hoist Roller,Construction Lift Hoist M20 Roller |
||
Product Description

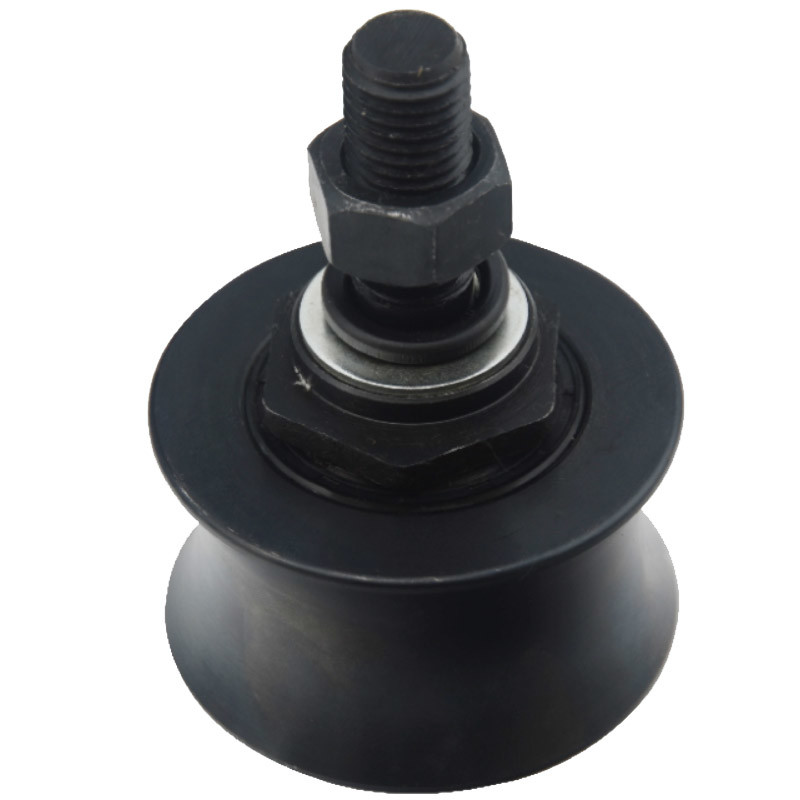

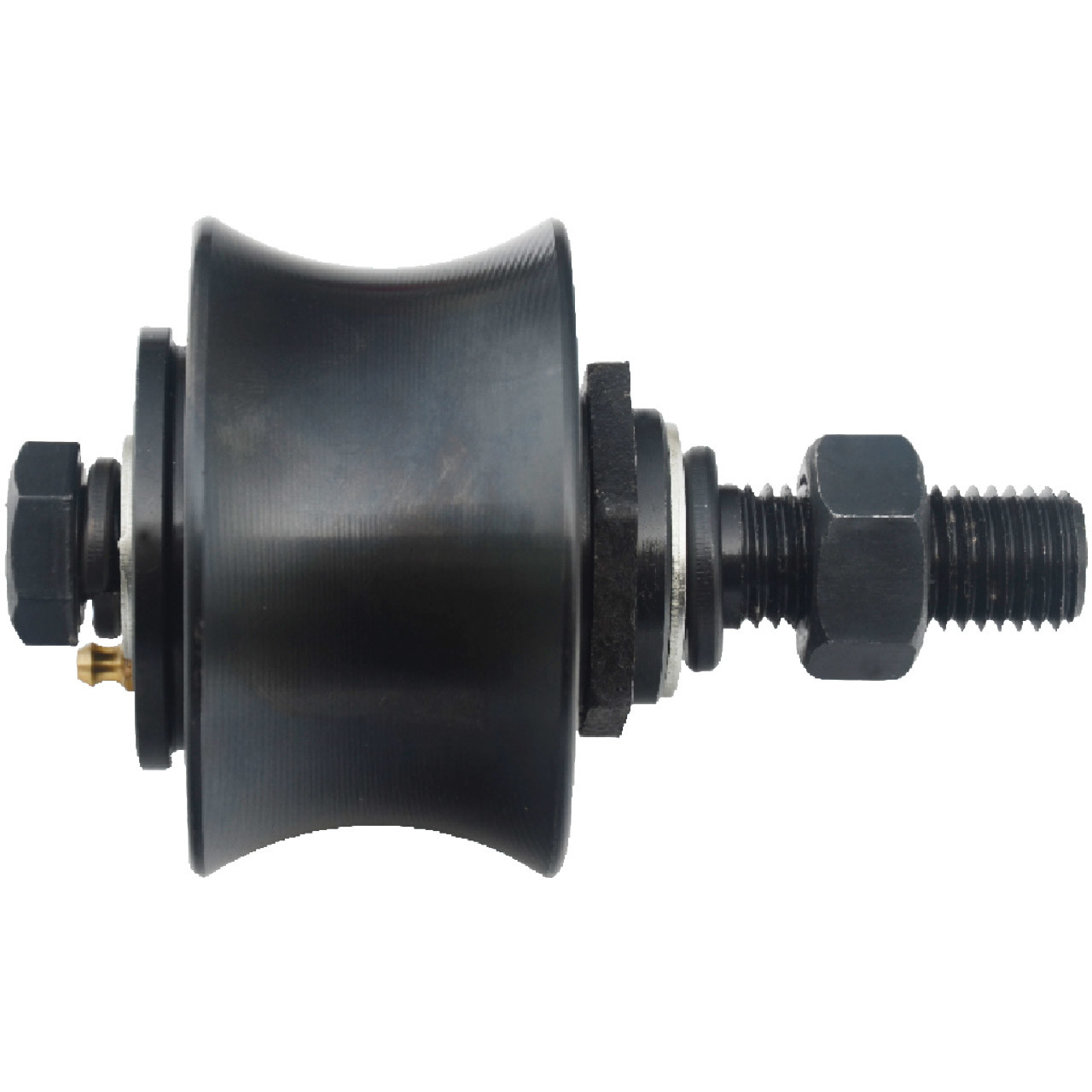

Rack And Pinion Construction Lift Passenger And Material Hoist M20 Roller

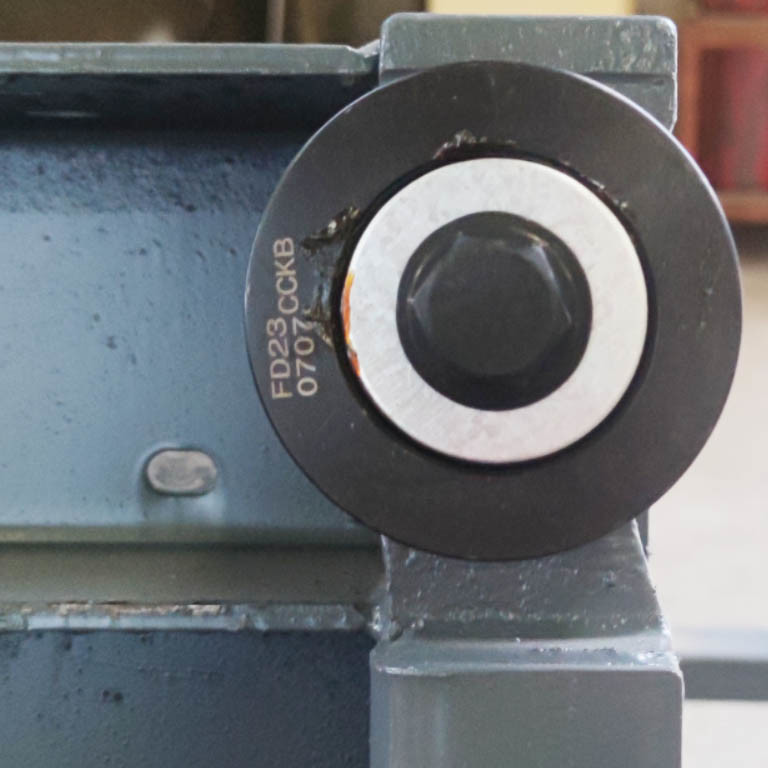

The roller is used on 650*650*1508mm mast section of rack and pinion lifts. The eccentric roller for can be adjusted to the right position, then the construction hoist can move up and down smoothly.
Features
Apply cover plate design to improve safety
Finish: Blackening or galvanizing
Technical Data
| Dimensions (mm) | |||
| Big diameter (D) | φ88 | Step height (h) | 5 |
| Small diameter (d) | φ74 | Bearing width (Assembly height) (L) | 30.5-34.5 (4) (shifting) |
| Roller thickness(H) | 49 | Eccentricity (P) | 3.5 |
| Arc ( R ) | R39 | Internal thread (M) | M20 |
| Step outer diameter | φ40 | Thread length (T) | 56 |
