Loading Platform For Various Circumstance Retractable Loading Deck Model MLP3400-H
| Place of Origin | CHINA |
|---|---|
| Brand Name | COMWINNING |
| Model Number | MLP3400-H |
| Minimum Order Quantity | 1 set |
| Price | negociate in USD |
| Packaging Details | In bulk |
| Delivery Time | 15 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 50 set per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Load Capacity | Up To 10,000 Lbs | Material | Steel |
|---|---|---|---|
| Platform Access | Customizable | Platform Color | Customizable |
| Platform Durability | High | Platform Length | Max 9435 Mm |
| Platform Maintenance | Easy | Platform Safety | High |
| Platform Width | 2200 Mm | Product Name | Retractable Loading Platform |
| Highlight | Deck Retractable Loading Platform,Steel Retractable Loading Platform,Retractable Construction Loading Platform |
||
Product Description

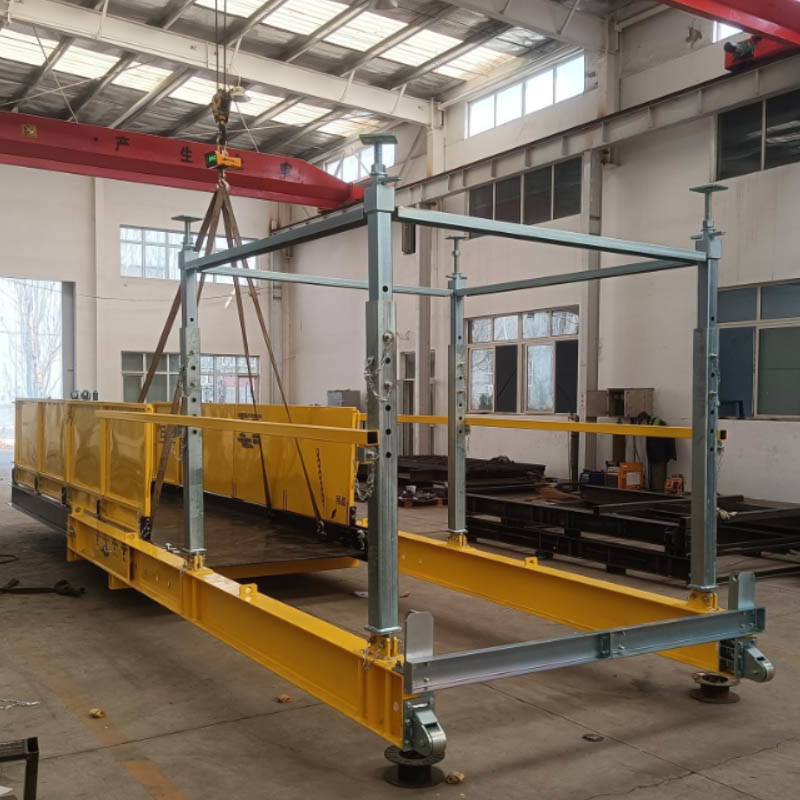

Loading Platform For Various Circumstance Retractable Loading Deck Model MLP3400-H
Brief

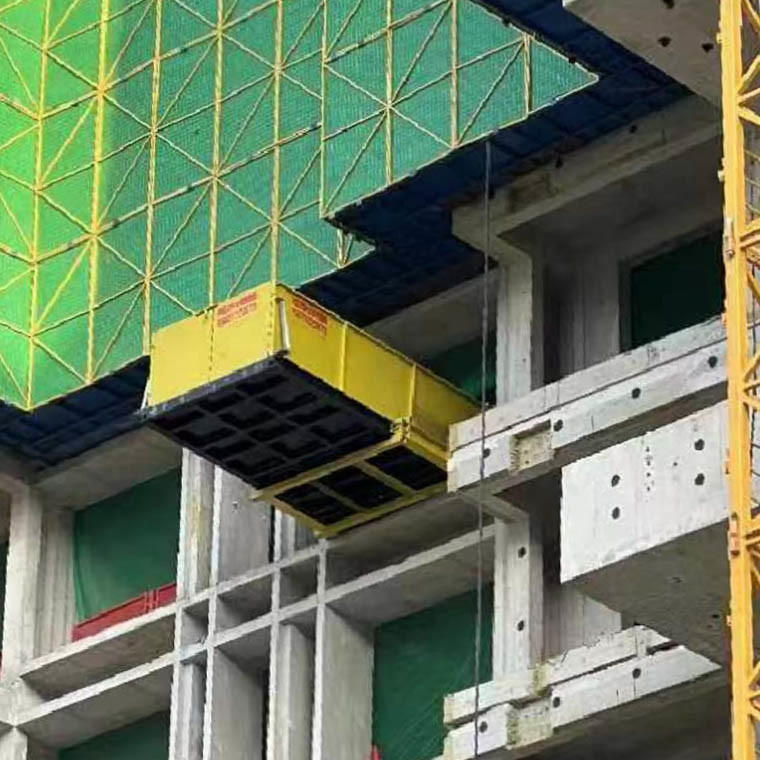

Retractable Loading Deck is a unique product to improve materials handling efficiency and safety for the storey-buildings and high-rise buildings. It offers an efficient and cost saving method of delivering goods to different levels by using a crane.
When cargos are required to be delivered to or from a particular floor, all the decks above that level can be retracted, enabling the crane to operate unobstructed.
Parameter
| Item | Unit | Data | Note |
| Outer Width | mm | 2200 | |
| Inner Width | mm | 1740 | |
| Forth/Rear Support Prop Spacing | mm | 2300 | |
| Left/Right Support Prop Spacing | mm | 2050 | |
| Height at Folded | mm | 510/420 | |
| Height of Side Panel | mm | 1200 | |
| Min Support Prop Height | mm | 2400 | |
| Max Support Prop Height | mm | 3300 | |
| Length at Retracted State | mm | 5805 | |
| Length at Extended State | mm | 9435 | |
| Extending Out Length of Stationary Frame | mm | 1450 | |
| Distance from Front Prop to Building Facade | mm | 1695 | |
| Extending Length of Moveable Deck | mm | 3800 | |
| Maximum Total Load (equidistribution) | ton | 5 |
