Efficient Loading Platform And Long Lasting For Construction Working Like Drawers
| Place of Origin | China |
|---|---|
| Brand Name | Comwinning |
| Model Number | MLP2200-H |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | In bulk |
| Delivery Time | 20-25 days |
| Payment Terms | T/T, LC before shipment |
| Supply Ability | 50 sets month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | Heavy | Maintenance | Easy |
|---|---|---|---|
| Material | Steel | Surface Treatment | Painted, Hot Galvanized |
| Installation | Easy | Name | Loading Platform |
| Safety | High | Size | Customizable |
| Highlight | Construction Loading Platform,Hot Galvanized Loading Platform,Customizable Construction Hoist Parts |
||
Product Description

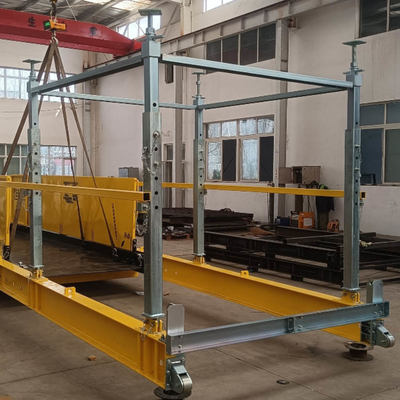

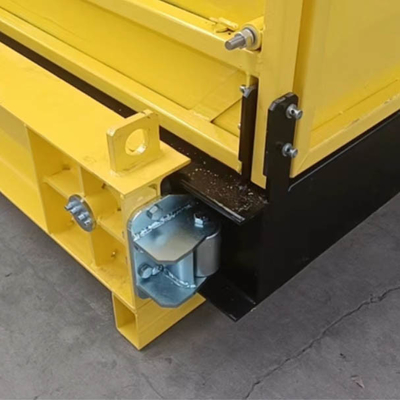

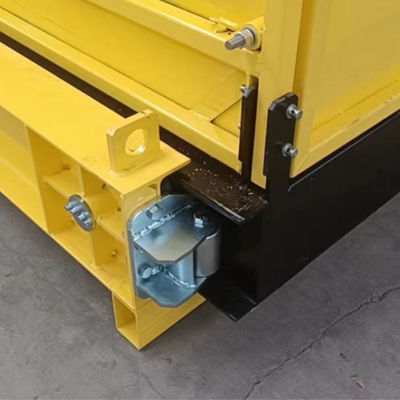

Efficient Loading Platform And Long Lasting For Construction Applications Working Like Drawers
Product Description:
Loading Platform is a heavy-duty, customizable construction site load platform. It is designed to support the large amounts of materials needed to move to a construction floor.
Retractable Loading Deck - a drawer for delivering bulky materials on any floor of the building.
Working like drawers, Retractable Loading Deck allow hook access to any floor of a high-rise construction building. With a 2 - 5 ton load capacity, Retractable Loading Deck can handle large, heavie- loads easily.
Features:
- Product Name: Retractable Loading Platform
- Durability: Long Lasting
- Maintenance: Easy
- Weight: Heavy
- Size: Customizable
- Surface Treatment: Painted, Hot Galvanized
Technical Parameters:
| Name | Loading Platform |
|---|---|
| Load Capacity | High |
| Weight | Heavy |
| Maintenance | Easy |
| Color | Customizable |
| Durability | Long Lasting |
| Installation | Easy |
| Surface Treatment | Painted, Hot Galvanized |
| Safety | High |
| Material | Steel |
| Application | Construction Site |
| Features | Retractable Loading Deck, Retractable Loading Platform |
Model MLP2200-H Retractable Loading Deck
| Item | Unit | Data | Note |
| Outer Width | mm | 2200 | Customizable |
| Inner Width | mm | 1740 | |
| Forth/Rear Support Prop Spacing | mm | 2300 | |
| Left/Right Support Prop Spacing | mm | 2050 | |
| Height at Folded | mm | 510/420 | |
| Height of Side Panel | mm | 1200 | |
| Min Support Prop Height | mm | 2400 | |
| Max Support Prop Height | mm | 3300 | |
| Length at Retracted State | mm | 5805 | |
| Length at Extended State | mm | 9435 | |
| Extending Out Length of Stationary Frame | mm | 1450 | |
| Distance from Front Prop to Building Facade | mm | 1695 | |
| Extending Length of Moveable Deck | mm | 3800 | |
| Maximum Total Load (equidistribution) | ton | 5 |
Applications:
Loading Platform is a perfect solution for companies looking for an efficient and durable way to load and unload materials to construction floor. It is made of high-grade steel with a high load capacity, providing excellent strength and stability. Its retractable loading deck and material loading platform makes the loading and unloading process efficient and safe. The surface is treated with painted or hot galvanized for added durability, ensuring long lasting use. Installation is quick and easy, making it an ideal choice for any loading dock system. Coming from China, Loading Platform is also offered with competitive payment terms, including T/T and LC before shipment.
Support and Services:
Technical Support and Services for Loading Platform
At Loading Platform, we’re dedicated to providing you with the best support and service available. Our technical support team is available 24/7 to help you with any questions or issues you might be facing.
We offer several services to help you get the most out of your Loading Platform experience. Whether you need help setting up your system, troubleshooting existing technical issues, or just need some advice and guidance on how to use the product, we are here for you.
Our services include:
- 24/7 technical support via phone, email, and live chat
- Software installation and configuration assistance
- Troubleshooting assistance for any technical issues
- Product usage and best practices advice
- Updates and patches for existing users
- Assistance with migrating existing systems to Loading Platform
We are here to help you get the most out of your Loading Platform experience. Contact us today to learn how we can best assist you.
FAQ:
- Q1: Where is Loading Platform from?
- A1: Loading Platform is from China.
- Q2: What kind of payment terms can I use to purchase Loading Platform?
- A2: You can use T/T or LC before shipment to purchase Loading Platform.
- Q3: What components are included in Loading Platform?
- A3: Loading Platform includes a loading platform and a controller.
- Q4: What is the size of the loading platform?
- A4: The size of the loading platform is L 9.4m × W 2.2m
- Q5: Does Loading Platform provide service in my area?
- A5: We provide service in many countries and regions. Please contact us with your address for more information.
