Construction Site Passenger And Materal Hoist SC200/200 Highly Strengthen Structure
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200(BD) |
| Minimum Order Quantity | 1 set |
| Price | Nigotiating |
| Packaging Details | Export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Processing Equipment | CNC Machines And Tool Fixtures | Material | Q355B Cool Roll Steel Plate |
|---|---|---|---|
| Design | Modular | Motor Control | VFC |
| Color | Yellow | Description | SC200/200(BD) Passenger And Materal Hoist |
| Highlight | personnel and materials,hoist man and material lift |
||
Product Description

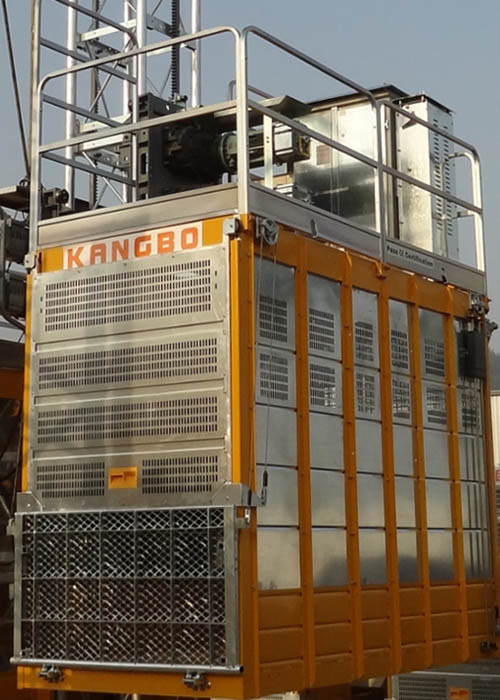

Passenger and Materal Hoist in Construction Site SC200/200(BD) KP-B05 B06
Features
Parts and Components are generic and interchangeable.
Durable and reliable, structure are highly strengthen.

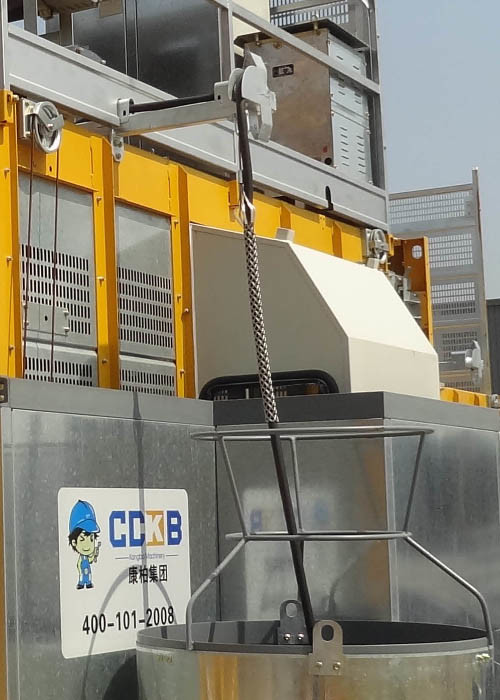

To make the power cables more durable, we apply the steel net to hold the cables to prevent the cables from damage at the bend place.
No jerking, no trembling.
Production
Made of Q345B high quality cool roll steel plate, Cut by Laser, welded by robots.
All components and parts are processed in tool fixture to ensure accuracy.
Technical Data
| Item | SC200/200 KP-B05, KP-B06 |
| Max. lifting height | 400 m |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–36 m/min. |
| Cage size (internal) | 3.2(L)x1.5(W)*2.35(H) meter |
| Motor control | FC control |
| Inverter | Schneider |
| Engine power | 2x11 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
