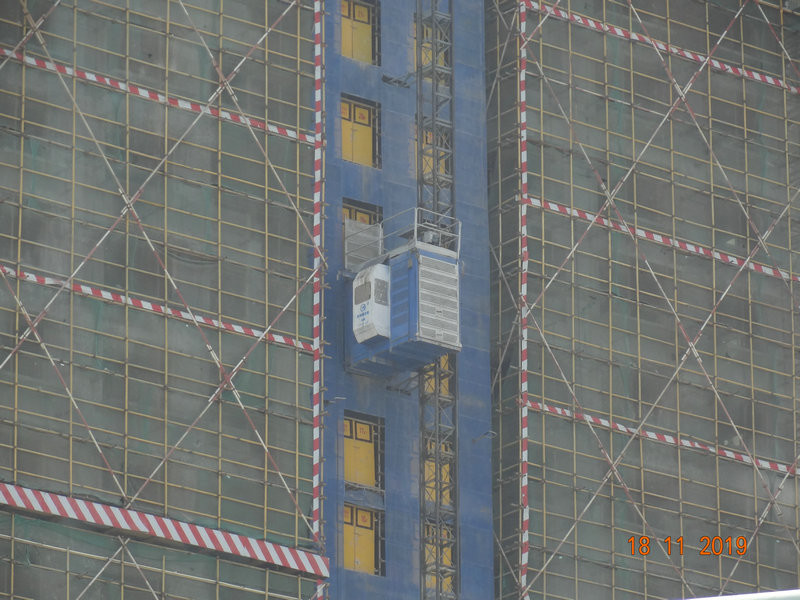

VFC Motors Twin Cage 2000KG Construction Hoist Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200-200 High Speed VFC Motors Construction Hoist KP-B12 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiate in USD |
| Packaging Details | By containers |
| Delivery Time | 35 days after receipt of L/C or T/T |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Construction Hoist Elevator | Application | Building Sites |
|---|---|---|---|
| Design | Modular Design And As Per EU Regulations | Material | Q355B |
| Finishing | Sandblasting And Baking Finish | Control | VFC Motors |
| Highlight | 2000KG Construction Elevator,2000KG Twin Cage Elevator |
||
Product Description
Fully Safety Device VFC Motors Construction Hoist Elevator
Safety
We have gained many patents on the design of building elevator/building hoist/construction lifter/building lifter/lifter and we have optimized several critical components related to safety, like transmission mechanism, safety hook, installation platform for anti-fall device, back gear, idler gear (anti-shearing), and counterpoise slide rail of the mast section. In this way, not only the high safety requirement for lifting people in ultra-high-rise construction is met but also the stability and riding comfort are improved.
In addition, there are some other safety devices for selection, such as micro-controlled automatic deceleration device for docking, wireless floor paging device, overload alarm, etc.
Features and Advantages
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* Easy access to electrical panels of elevator for maintenance.
* Certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
* The elevators are equipped with full set of safety facilities, including centrifugal brake, limit switches, Electromechanical interlocks.
Technical Data
| Item & Article No. | SC200/200BG, KP-B12 |
| Cage Nos. | Twin Cage |
| Payload Capacity | 2000KG per Cage |
| Lifting Speed | 0–60 meter/minute with Full Load |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) meter |
| Motor Power | 3x15 KW per Cage |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*55KW per Cage |
| Gearbox | PIELI Helical Gearbox |
| Anti-drop Safety Device | Centrifugal Brake, SAJ40-1.6 |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack Modulus | 8 Modulus, 60 Teeth |
