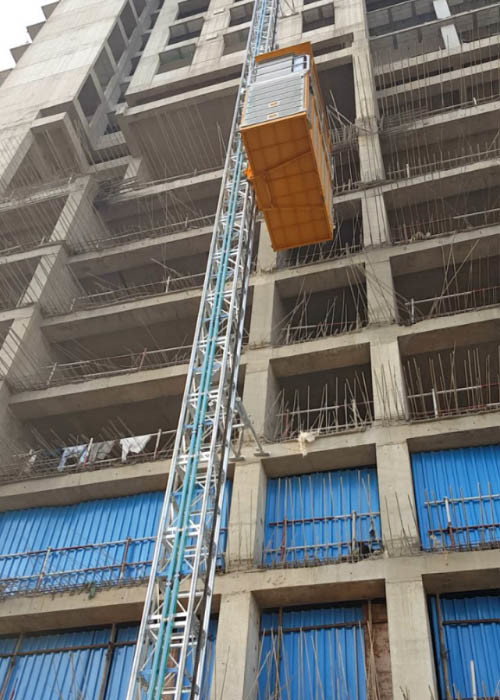

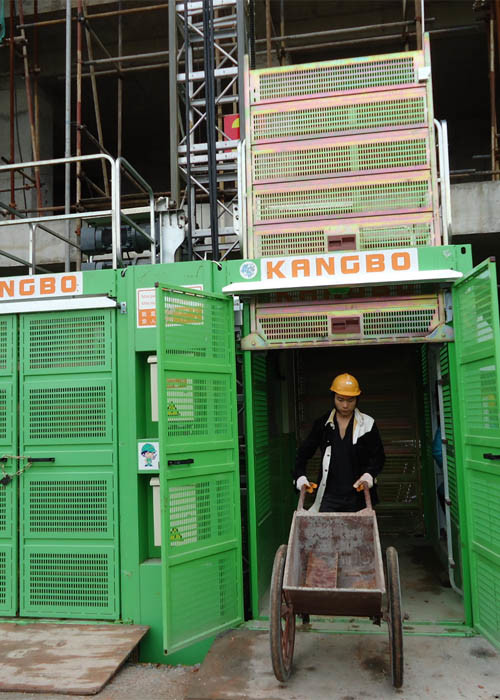

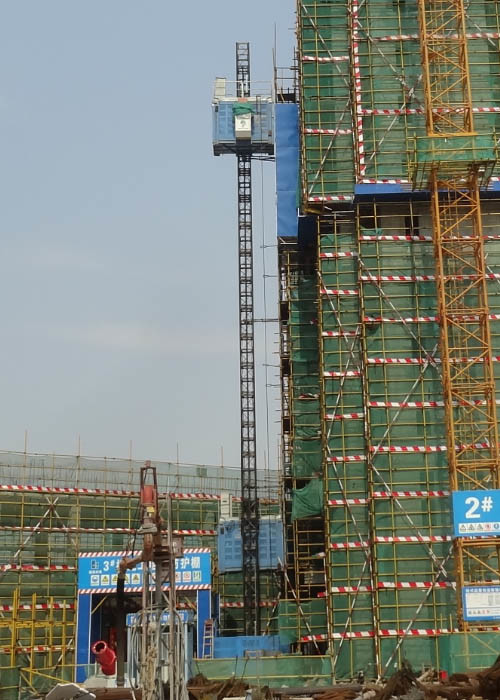

SC200BD Rack And Pinion Hoist 2000KG Payload With Multiple Doors / Flaps Choice
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200BD |
| Minimum Order Quantity | 1 unit |
| Price | negotiate |
| Delivery Time | 30 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q345B Cool Roll Steel Plate | Processing Equipment | CNC Machine, Robot |
|---|---|---|---|
| Design | Modular | Spare Parts | Universal And Interchangeable |
| Name | Rack And Pinion Hoist | ||
| Highlight | rack and pinion lift,rack & pinion hoist |
||
Product Description
Rack and Pinion Materials Hoist 2000KG Payload KP-B05,B06
Features
* Offers a multiple choice of doors or flaps.
* Adopt world famous electrical parts.
* Motors are with FC control.
* full set of safety facility, including centrifugal brake, limit switches
* Be equipped with a frequency control unit (FC), with closed-loop.
Production
The Q345 cool roll steel plates are cut by Laser, processed by CNC machines, welded by robots.
Main steel channel of cage frame is enlarged and thickened, which made of Q345B cool rolled steel plate.
tool fixtures.
| Technical Data | KP-B09, KP-B10 |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450 m |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | FC control |
| Engine Power | 2x23 kw/87Hz |
| Gearbox | Helical reducer |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of Mast | square column 650*650 mm with bolted rack |
| Length Mast Section | 1.508 m |
| Rack module | 8 |
