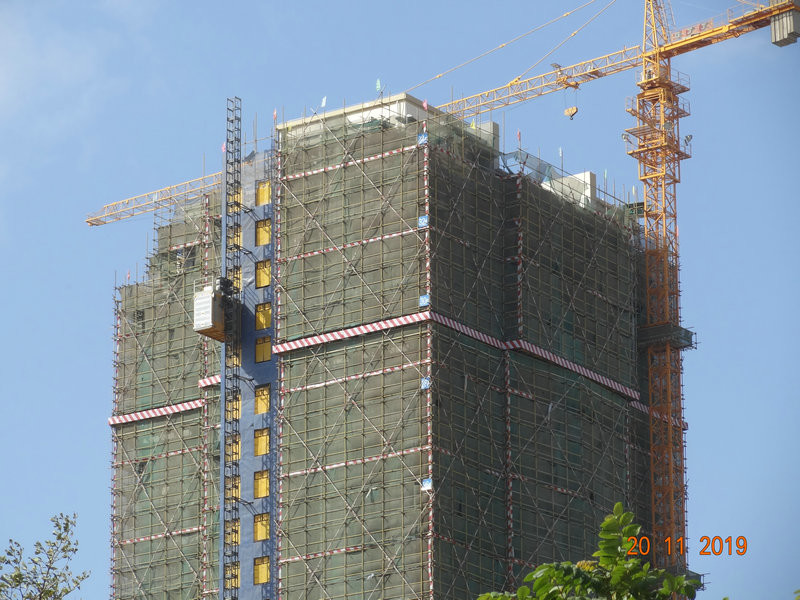

Engine Power 2x15Kw Passenger Safety Rack And Pinion Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200(BD), KP-B07, B08 |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiate |
| Packaging Details | Suitable for export |
| Delivery Time | In 30 days after receipt of L/C, T/T |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rack And Pinion Hoist | Material | Q345B Cool Roll Steel Plate |
|---|---|---|---|
| Finish | Painted And Galvanised | Color | Customized |
| Purpose | Vertical Transportation In Construction | Feature | High Safety |
| Highlight | 2x15kw Passenger Hoist,Safety rack & pinion hoist |
||
Product Description
High Safety Engine Power 2x15Kw Rack And Pinion Hoist
Rack And Pinion Hoist Introduction
1. Direct start-up and stop.
2. Simplicity.
3. Simple maintenance.
4. Optional hot deep galvanized cage
5. Aluminum alloy cage door.
6. Safe,reliable,economic,efficient.
Rack And Pinion Hoist Features
Motors are FC controlled make the lifts start/stop smoothly.
Adopt Schneider inverters.
Flap Type Exit Door as loading/unloading ramp are availble.
Strengthened lifts car frame, extremely strong cage make the lifts durable.
Lifts car roof made of steel plate and the edges are totally welded.
Rack And Pinion Hoist Production
Main steel channel of the cage frame are enlarged and thickened. Cage roof edges are totally welded by robots.
Main steel structure parts are made of cold rolled steel plates and processed by CNC machines in tool fixtures.
Rack And Pinion Hoist Parameters
| Technical Data | KP-B07, B08 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–46 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x15 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square Column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
