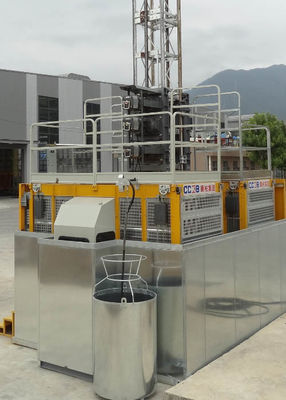

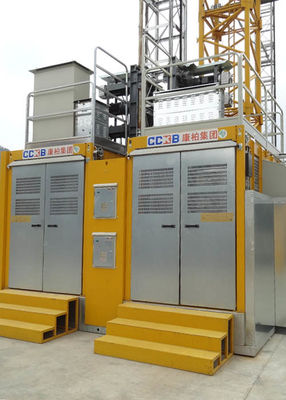

VFD Yellow Rack And Pinion Hoist Engine Power 2x15Kw For Construction Man / Materials
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200(BD), KP-B07, B08 |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiate |
| Packaging Details | Suitable for export |
| Delivery Time | In 30 days after receipt of L/C, T/T |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Q355B Cool Roll Steel Plate | Finish | Sand Blasting And Painted, Galvanised |
|---|---|---|---|
| Color | Yellow | Purpose | Vertical Transportation In Construction |
| Type | Rack And Pinion Hoist | Standard | EU Regulations |
| Description | Material & Passengers Elevators | Motor Control | FC (Frequency Control) |
| Highlight | rack and pinion elevator,rack & pinion hoist |
||
Product Description
Rack and Pinion Hoist Lifts for Construction Man and Materials VFD, KP-B07, B08
Features
Motors are FC controlled make the lifts start/stop smoothly.
Reliable and long work life.
Adopt Schneider inverters.

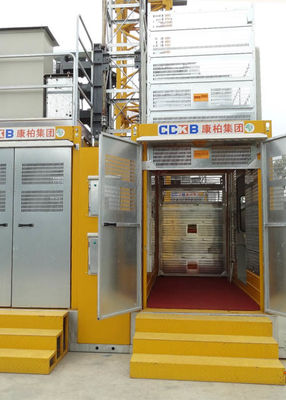

Flap Type Exit Door as loading/unloading ramp are availble.
Strengthened lifts car frame, extremely strong cage make the lifts durable.
Lifts car roof made of steel plates and the edges are totally welded.
Production
Main steel channel of the cage frame are enlarged and thickened.
Cage roof edges are totally welded by robots.
Main steel structure parts are made of cold rolled steel plates and processed by CNC machines in tool fixtures.
Technical Data
| Item | KP-B07, KP-B08 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–46 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x15 kw each cage |
| Gearbox | Helical Reducer |
| Safety device type | Centrifugal Brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square Column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
