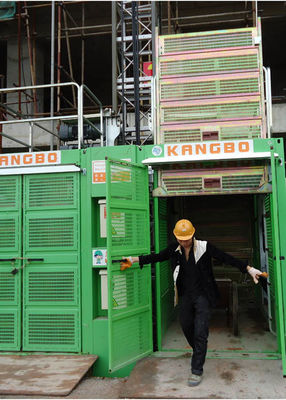

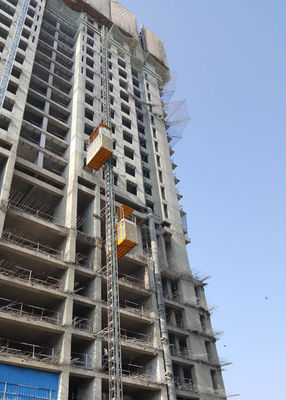

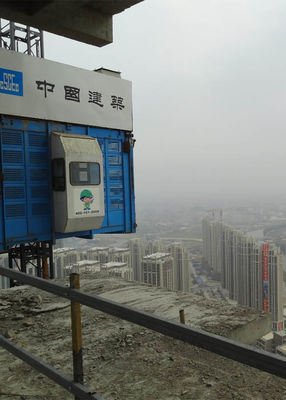

Construction Rack And Pinion Hoist SC200/200 Lifting Speed 0–60 M/Min TUV Proof
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200(BD) |
| Minimum Order Quantity | 1 unit |
| Delivery Time | 30 day |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 unit per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Vertical Transportation Of Man And Materials | Color | Yellow |
|---|---|---|---|
| Finishing | Sand Blasting And Paint, Galvanising | Proof | TUV |
| Item | Rack And Pinion Hoist Lifter For Construction VFD SC200/200 KP-B09, KP-B10 | Description | SC200/200 Rack And Pinion Hoist |
| Highlight | rack and pinion elevator,rack and pinion lift |
||
Product Description
Rack and Pinion Hoist Lifter for Construction VFD SC200/200 KP-B09, KP-B10
Features
Motors are FC controlled make the lifts start/stop smoothly.
Adopt Schneider inverters.
Flap Type Exit Door as loading/unloading ramp are availble.
Strengthened lifts car frame, extremely strong cage make the lifts durable.
Lifts car roof made of steel plate and the edges are totally welded.
Production
Main steel channel of the cage frame are enlarged and thickened. Cage roof edges are totally welded by robots.
Main steel structure parts are made of cold rolled steel plates and processed by CNC machines in tool fixtures.
Technical Data
| Item | KP-B09, KP-B10 |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450 m |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | FC control |
| Engine Power | 2x23 kw/87Hz |
| Gearbox | Helical reducer |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of Mast | square column 650*650 mm with bolted rack |
| Length Mast Section | 1.508 m |
| Rack module | 8 |
