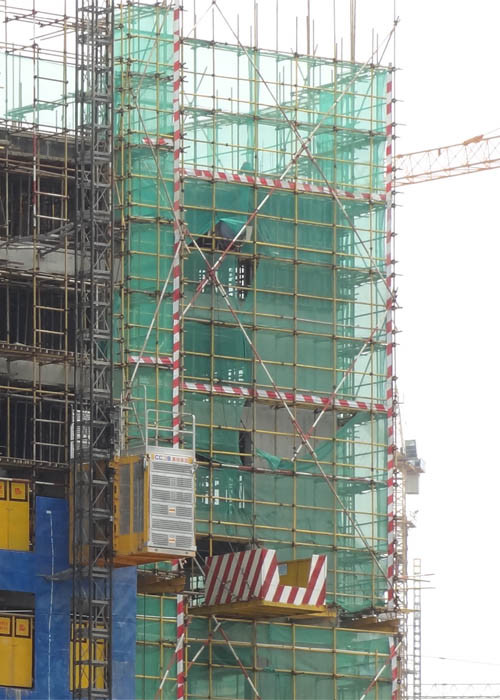

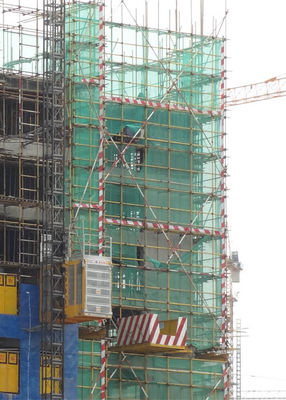

Durable Passenger And Material Hoist Vertical Transportation Payload Capacity 2000Kg
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200BG KP-B09B10 |
| Minimum Order Quantity | 1 unit |
| Price | negotiate |
| Packaging Details | export package |
| Delivery Time | 30 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | SC200 Passenger And Material Hoist | Material | Q355B Steel |
|---|---|---|---|
| Usage | Vertical Transportation Of Man And Materials In Construction Site Or Building Site. | Design | Truly Modular |
| Processing | CNC Machines And Tool Fixtures | Color | Yellow |
| Highlight | man and material hoist,personnel and materials |
||
Product Description
Passenger and Material Hoist Rack and Pinion Elevator SC200BG KP-B09B10
Production and Materials
The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q355 high strength steel.
Main structure frame are made of 16Mn and Q355 high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Standard Configuration
There is a small crane for conenient assembly of the construction lift.
Available in single or twin hoist cage configuration.
Frequency control motors make the construction hoists starting and stopping very smoothly, with low starting current and much less wear and tear.
Manual or Automatic Controls of the hoist is optional.
There is LED lighting inside construction elevator car.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
Features and Advantages
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
Technical Data
|
Item |
Passenger and Material Rack and Pinion Elevator KP-B09,B10 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/450 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x23 kw/87Hz |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650*1508 mm with bolted rack |
| Rack module | |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
