Flexible Efficient Man And Material Lift , Personnel Hoist System Payload Capacity 3000Kg
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Passenger and material hoist SC300BG KP-B15 SC300-300BG KP-B16 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | Export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | SC300BG Construction Material Passenger Lift | Application | Vertical Transportation Of Man And Materials In Construction Site Or Building Site, Bridges, Chimney, Plants, Etc. |
|---|---|---|---|
| Design | Modular And According To European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009 | Material | Q355B Cool Roll Steel Plate |
| Motor Control | VFD | Color | Yellow |
| Highlight | personnel and materials,hoist man and material lift |
||
Product Description

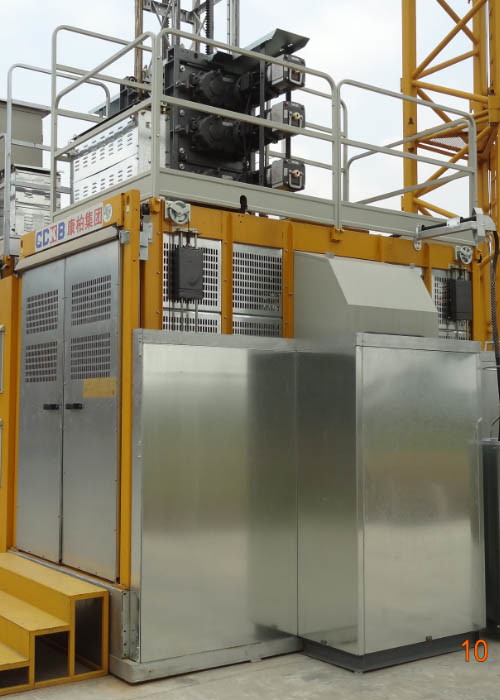

Passenger and Material Hoist Rack and Pinion SC300BG KP-B15 SC300-300BG KP-B16
Features and Advantages
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
Technical Data
| Item & Article No. | SC300BG, KP-B15; SC300/300BG, KP-B16 |
| Payload capacity | 3,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | Frequency Control |
| Engine power | 3x23 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
