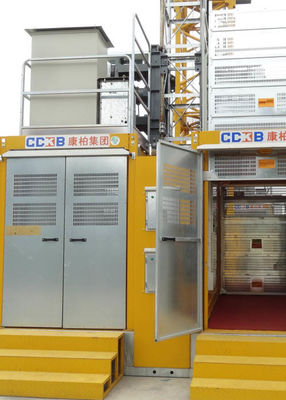

Payload Capacity 3000Kg Rack & Pinion Hoist Cage Internal Size W1.5 M * L3.2 M * H2.35 M
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Rack and pinion hoist SC300BG KP-B15 SC300/300BG KP-B16 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Construction Site, Factory | Description | SC300 Heavy Duty Rack & Pinion Hoist |
|---|---|---|---|
| Design | According To European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009. | Production | As Per EN 12159:2012, EN 60204-1:2006/A1:2009. |
| Material | Q355B | Motor Control | Frequency Control |
| Highlight | rack and pinion elevator,rack & pinion hoist |
||
Product Description
Rack and pinion hoist construction elevator SC300BG KP-B15 SC300/300BG KP-B16
Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
Multiple choice of construction lifts car doors or ramps is available.
Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
Main structure frame are made of 16Mn and Q345 high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Technical Data
| Item & Article No. | SC300BG, KP-B15; SC300/300BG, KP-B16 |
| Payload capacity | 3,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | Frequency Control |
| Engine power | 3x23 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
