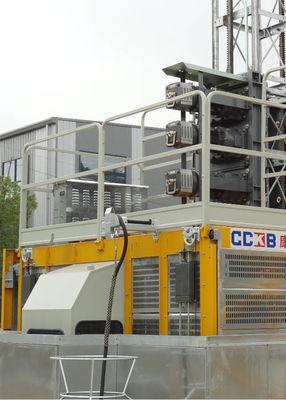

VFD Motor Rack And Pinion Elevator , Construction Site Lift Max Lifting Height 0–46 M/Min
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Rack and pinion hoist SC320(BZ) KP-B17 SC320/320(BZ) KP-B18 |
| Minimum Order Quantity | 1 set |
| Price | in USD |
| Packaging Details | export package |
| Delivery Time | 250-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | SC320 Construction Site Lift | Application | Transportation Of Man And Material At Building Site |
|---|---|---|---|
| Material | Q355B Cool Roll Steel Plate | Processing | Cut By Laser, Processed By CNC Machines In Tool Fixtures |
| Motor | VFD | Color | Yellow |
| Highlight | rack and pinion elevator,rack and pinion lift |
||
Product Description
Rack and pinion hoist construction lift SC320(BZ) KP-B17 SC320/320(BZ) KP-B18
Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Multiple choice of construction lifts car doors or ramps is available.
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q355B high strength steel.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Technical Data
| Item & Article No. | SC320(BZ) KP-B17, SC320/320(BZ) KP-B18 |
| Payload capacity | 3,200 kg per cage |
| Lifting speed | 0–46 m/min. |
| Max. lifting height | 450 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 3x15 kw per cage |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast section | square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
