Contruction Heavy Duty Rack Pinion Passenger And Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC250(BG) KP-B19 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export package |
| Delivery Time | 30 days after receipt of down payment or L/C |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 set per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Passenger And Material Hoist | Model | SC250(BG) KP-B19 |
|---|---|---|---|
| Application | Construction Site, Building Site | Design | Truly Modular |
| Material | Q345B Steel | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Quality | As Per European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009 | Type | Heavy Duty |
| Highlight | Rack Pinion Passenger Hoist,Heavy Duty rack & pinion hoist |
||
Product Description

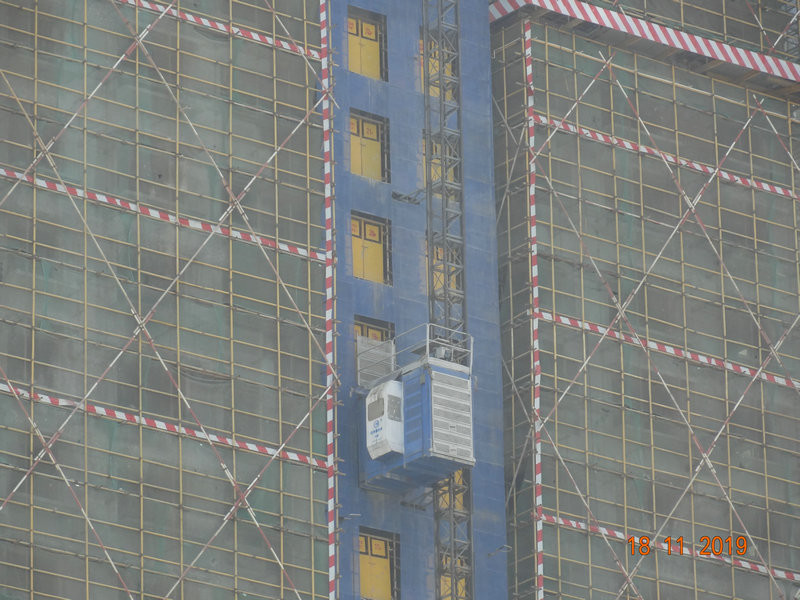

Heavy Duty Rack Pinion Contruction Passenger And Material Hoist
Passenger And Material Hoist Features
1. Due to the strict raw material procurement control system, ourbuilding hoist is guaranteed with safe and reliable performance.
2. The steel, electrical components, hoist cables, high strength bolts and spare parts are all introduced from well-known international and domestic suppliers.
3. The CNC cutting blanking production line ensures the accurate size of the accessories.
4. Structural parts are welded with argon gas shield so as to keep welding quality and prolong the lifespan of the passenger hoist.
5. The cold-formed steel is adopted to ensure the quality and stiffness of the steel plate. The strengthened steel structure design successfully reduces the risk of structural deformation.
6. The surface of the building elevator/building hoist/construction lifter/building lifter/lifter is treated with polyurethane paint and anti-salt-spray paint. The main parts and accessories are hot-dip galvanized and sprayed with plastics. Hence, the anticorrosion ability of the construction lifting equipment is improved so that its service life is effectively extended.
7. The rigorous and dependable detection means effectively ensure the comprehensive performance of the equipment.
Passenger And Material Hoist Optional Configuration
Rack and pinion elevator cage flap door as loading/unloading ramp.
Sliding Contact Line (Integrated Conductive Rail or Busbar) specially for rack and pinion lifts.
An intelligent elevator control system, Multi-function Control System, with functions of fault detect, display and alarm, and automatic cage landing/stop and floor selector, is available.
Automatic greasing machine for rack and pinion elevator is availble.
Passenger And Material Hoist Technical Data
| Item & Article No. | SC250(BG) KP-B19 |
| Payload Capacity | 2,500 KG per Cage |
| Lifting Speed | 0–80 m/min. |
| Max. Lifting Height | 250/450 m* |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Motor Control | FC control |
| Engine Power | 3x38 KW per Cage |
| Gearbox | Helical Reducer |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
| * Increased lifting height on request. 400 m with step-up/step-down transformer. | |
| Details of the Equipment | ||
| Item | Dimension/Specification | Material & Process |
| Standard Configuration | ||
| Cage Internal Size | 3.2(L)*1.5(W)*2.35(H) Meters | Perforated Galvanised Cold Roll Steel Plate |
| Cage Frame | Optimized and Strengthened Structure | Q345B Steel |
| Cage Paint | Yellow | Sandblasting and Painted |
| Cage Entry Door | Vertical Sliding | Galvanised Perforated Cold Roll Steel Plate |
| Cage Exit Door | Vertical Sliding/Flap Type | Galvanised Perforated Cold Roll Steel Plate |
| Driver's Cabin | Excluded/Included | |
| Motor Make | LUCASA make | |
| Gearbox | Kangbo Make Pieli Brand Helical Gearbox | |
| Mast Section | 650*650*1508mm, Φ76mm, δ4.5mm | Q345B Steel, Painted |
| Rack | 40*60*1508mm, 8 Modulus. | |
| Tie-in | Type II, 2900-3400mm; Every 9 m one set; | |
| Or as per users request | ||
| Safety Device | SAJ5.0-2.0 | |
| Ground Enclosure | Galvanised Cold Roll Steel Plate | |
| Enclosure Door | Double Hinge Side Open Door | Perforated Galvanised Cold Roll Steel Plate |
| Power Supply | Cable & Cable Drum | Galvanised Cold Roll Steel Plate |
| Over Load Protect | Included | |
| Optional Configuration | ||
| Mast Section | 650*650*1508mm, Φ76mm, δ4.5mm | Q345B Steel, Galvanised |
| Power Supply | Slide Contact Line System (Busbar) | |
| Floor Selection | Multi-functional Control System (Floor selector, Automatic Landing, Error Detection and Display, etc.) | |
| TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009. | ||
