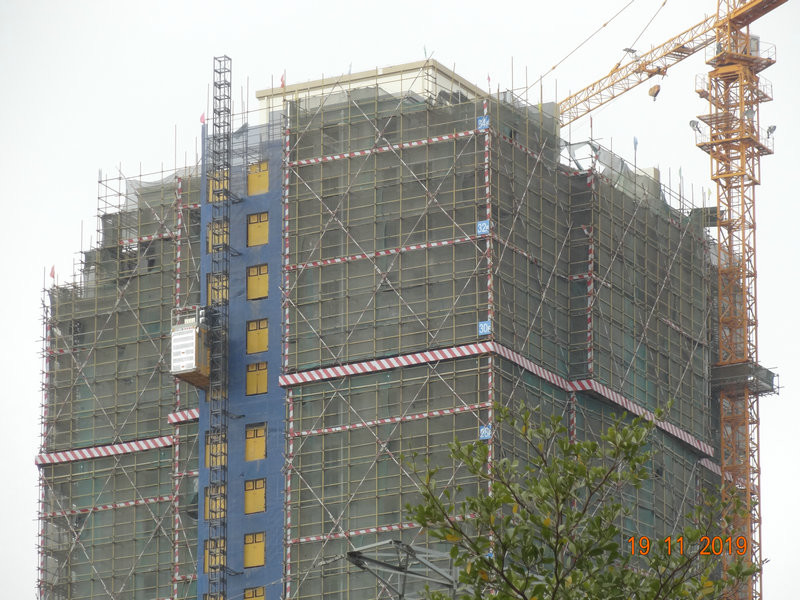

Steel Rack & Pinion 1 Ton Passenger And Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200(BD) KP-B02 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | Suitable for Export |
| Delivery Time | 30 days after receipt of down payment or L/C |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Passenger And Material Hoist | Model | SC200(BD) KP-B02 |
|---|---|---|---|
| Design | According To European Standard | Material | High Strength Steel |
| Production | Processed By CNC Machines, Laser, Robots In Assembly Line. | Capacity | 1 Ton |
| Highlight | rack & pinion steel hoist,1 Ton Material Hoist |
||
Product Description
High Strength Steel 1 Ton Passenger And Material Hoist
Passenger And Material Hoist Advantage
1. Adopting advanced technology both at home and abroad,SC series construction elevator is novel in design,resonable in structure,simple in operation,covenient in assembly and disassembly,safe and reliable in working.
2. The unit incorporates famous brand electric components and main parts in transmission mechanism.The steel structure is made of high-quality steel material and welded with CO2 gas shield welding.Surface paint is made with imported raw materials in brmiant ,long lasting colors.
3.The unit is provided with reliable safety interlock devices,safety switch,breakage protection switch,upper and lower limits and limit switches ,etc,Progressive dropping safety devices and safety protection hook are provided.
4. The safety design and configuration fully comply to national standards.
construction hoist have many characters and advantages such as starting smoothly,novel structure,high efficiency and energy saving,environmental protection ,safe and reliable.
And we can also provide safty device include overload protector,electric interlocking system,automatic layer system ,floor calling device according to the client’s customizing.
Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.
Main structure frame are made of 16Mn and Q345 high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
The construction lift cage roof is made of a full steel plate, and the edges of roof are totally welded, to ensure there is no water leakage, and make the hoist cages with high strength.
Techincal Data
| Technical Data | KP-B02 |
| Payload capacity | 1,000 kg |
| Lifting speed | 0–54 m/min. |
| Max. lifting height | 250/400 m* |
| Cage quantity | 2 cages |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x2x15 kw |
| Gearbox | Helical reducer, Pieli brand |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
WARRANTY POLICY:
15 Months From The Date Of Bill Of Lading Or 12 Months From The Date Of Commissoning Whichever Is Earlier.
Warranty Include Motors, Reducers And VFD. Wear Parts Not Included.
Warranty Is Limited To Any Manufacturing Defects And It Does Not Include Defects Caused Due To Mishandling / Accidents Etc.
However Warranty Is Not Applicable On Electrical Contractors And Fuses.
