Rack And Pinion Civil Architecture Buck Hoist Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Passenger and Materal Hoist rack and pinion high speed KP-B01 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | in Container |
| Delivery Time | 30 days after receipt of down payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Buck Hoist Elevator | Type | Rack And Pinion |
|---|---|---|---|
| Material | Q345B Steel | Production | Standardized Production |
| Quality Control | As Per European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009 | Finishing | Sandblasting And Paint |
| Highlight | rack pinion Civil Architecture hoist,rack & pinion hoist Elevator |
||
Product Description
Rack And Pinion Civil Architecture Buck Hoist Elevator
Buck Hoist Elevator Introduction:

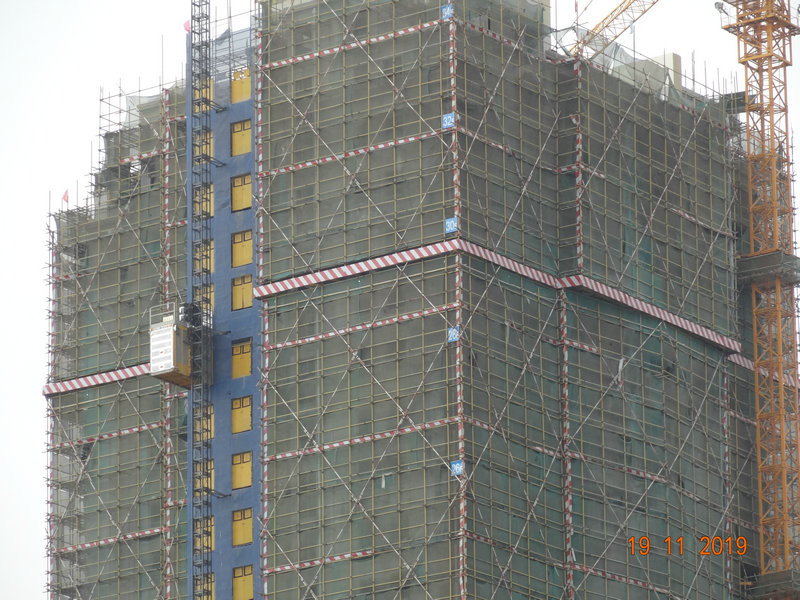

Hoist is a Rack and Pinion EL.Building lifter widely applies to such construction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.
It is installed and dismounted conveniently and can grow as high as the building grows height.The lifter has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers’ working intensity.
Buck Hoist Elevator Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Multiple choice of construction lifts car doors or ramps is available.
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
Buck Hoist Elevator Features and Advantages
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
Buck Hoist Elevator Technical Data
| Technical Data | KP-B01 |
| Payload capacity | 1,000 kg |
| Lifting speed | 0–54 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x15 kw |
| Gearbox | KANGBO make Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
| Standard Configuration | ||
| Cage Internal Size | 3.2(L)*1.5(W)*2.35(H) Meters | Perforated Galvanised Cold Roll Steel Plate |
| Cage Frame | Optimized and Strengthened Structure | Q345B Steel |
| Cage Paint | Yellow | Sandblasting and Painted |
| Cage Entry Door | Vertical Sliding | Galvanised Perforated Cold Roll Steel Plate |
| Cage Exit Door | Vertical Sliding/Flap Type | Galvanised Perforated Cold Roll Steel Plate |
| Driver's Cabin | Excluded or Included as per users' requests | |
| Motor Make | Zhangjiang make | |
| Gearbox | Kangbo Make Pieli Brand Helical Gearbox | |
| Mast Section | 650*650*1508mm, Φ76mm, δ4.5mm | Q345B Steel, Painted |
| Rack | 40*60*1508mm, 8 Modulus. | |
| Tie-in | Type II, 2900-3400mm; Every 9 m one set; | Q345B Steel, Painted |
| Or as per users request | ||
| Safety Device | SAJ4.0-1.2 | |
| Ground Enclosure | Galvanised Cold Roll Steel Plate | |
| Enclosure Door | Double Hinge Side Open Door | Perforated Galvanised Cold Roll Steel Plate |
| Power Supply | Cable & Cable Drum | Galvanised Cold Roll Steel Plate |
| Over Load Protect | Included | |
| Optional Configuration | ||
| Mast Section | 650*650*1508mm, Φ76mm, δ4.5mm | Q345B Steel, Galvanised |
| Power Supply | Slide Contact Line System (Busbar) | |
| Floor Selection | Multi-functional Control System (Floor selector, Automatic Landing, Error Detection and Display, etc.) | |
