3200 Kg Rack And Pinion Passenger And Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Passenger and material hoist SC320(BZ) KP-B17 SC320/320(BZ) KP-B18 |
| Minimum Order Quantity | 1 set |
| Price | in USD |
| Packaging Details | export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Passenger And Material Hoist | Application | Vertical Transportation Of Man And Materials In Construction Site Or Building Site, Bridges, Chimney, Plants, Etc.. |
|---|---|---|---|
| Material | Q345B Cool Roll Steel Plate | Production | Processed By CNC Machines, Laser, Robots In Assembly Line |
| Motor Control | FC | Feature | Strong Transportation Capacity |
| Highlight | 3200kg Passenger And Material Hoist,rack and pinion hoist |
||
Product Description

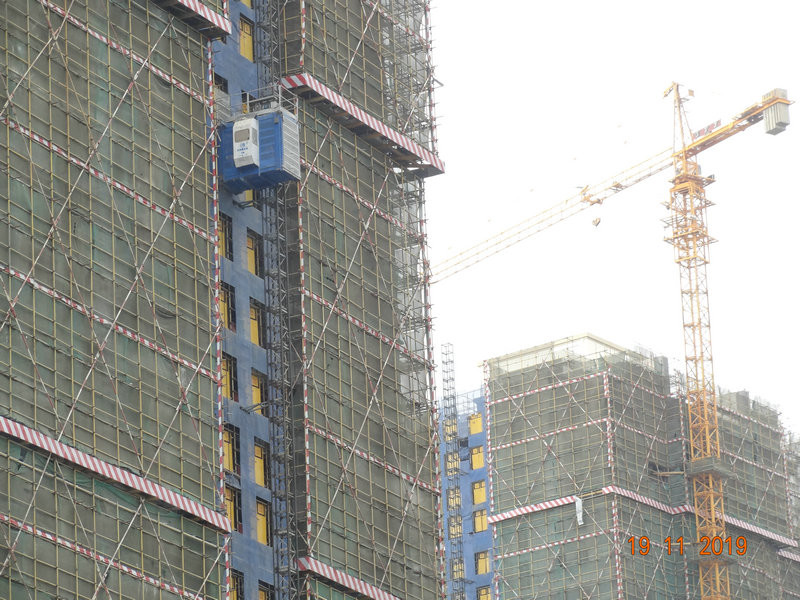

Strong Transportation Capacity 3,200 Kg Passenger And Material Hoist
Passenger And Material Hoist Introduction
construction elevator, adopt external setting meshing rack and pinion type design,rated load is 3200kg, rated lifting height is 450m. Equipped with a national patent approved progressive safety device, can brake automatically when falling situation occurs. And the drive system is on the top of the cage, reliable and easy to operate and maintenance.The highest working lifting height can up to 300M. Construction Elevator is widely used in Construction Projects, Such as industrial and residential building projects, bridge construction, underground construction, large chimney construction buildings and shipping building industry and other place.Which is a vertical transport equipment used for material and personnel as a permanent and temporary elevator also van be used for warehouse and high towers buildings projects.
Passenger And Material Hoist Features and Advantages
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
Passenger And Material Hoist Parameters
| Item & Article No. | SC320(BZ) KP-B17, SC320/320(BZ) KP-B18 |
| Payload capacity | 3,200 kg per cage |
| Lifting speed | 0–46 m/min. |
| Max. lifting height | 450 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 3x15 kw per cage |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
