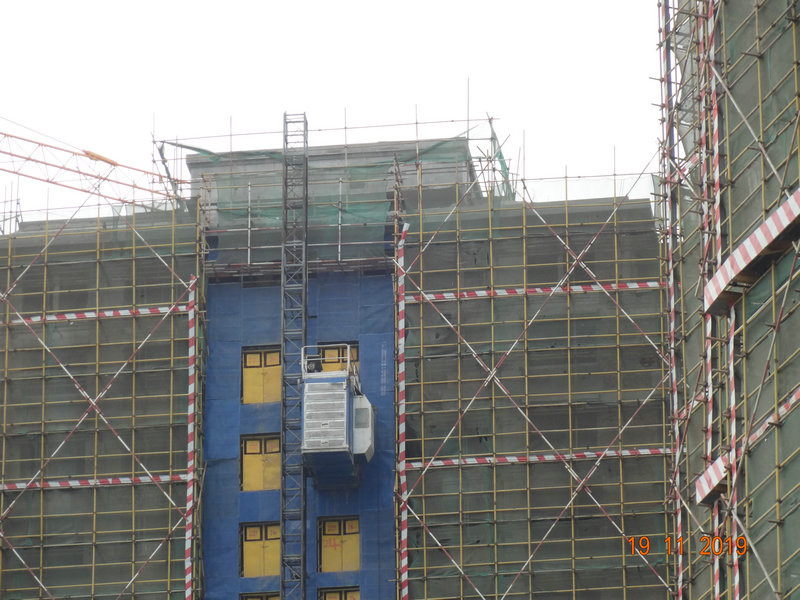

SC200BG Bridges Construction 450m Passenger And Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Passenger and material hoist rack and pinion SC200BG MP-B11 SC200/200BG MP-B12 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Passenger And Material Hoist | Application | Construction Site, Building Site, Bridges, Chimney, Plants, Etc. |
|---|---|---|---|
| Design | According To European Regulation | Hight | 450m |
| Processing | Processed By CNC Machines In Tool Fixtures | Feature | Long Life |
| Highlight | 450M Construction hoist,SC200BG hoist |
||
Product Description
Long Life Bridges Construction 450m Passenger And Material Hoist
Passenger And Material Hoist Description
1. Passenger And Material Hoist have features as good quality, long life, wide applicationrange and convenient for maintenance.
2. Passenger And Material Hoist's gearing adopts imported bearing, enameled cable and oil seal.
3. Passenger And Material Hoist's electric parts adopt products from world renowned manufacturers such as Schneider, Siements and LG.
4. Passenger And Material Hoist's racks and pinion adopts special material and heat-treatment technique, which prolong the life of these parts.
5. Passenger And Material Hoist's steel structure uses quality steel from famous domestic manufacturers, The surface of the steel structures can apply paint-spray, parkerizing baking finish or hot galvanizing processing according to users requirements. The cage can be produced and decorated by aluminium molded board, punched-plate or figured aluminium board.
Passenger And Material Hoist Configuration
There is a electrical small crane available to facilitate the assembly of the construction elevator.
There is the additional 'C' door at cage side for convenient loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Passenger And Material Hoist Technical Data
| Item & Article No. | SC200BG, MP-B11; SC200/200BZ, MP-B12 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 3x15 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
