Overvoltage Protection 3000kg Passenger And Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Passenger and material hoist SC300BG KP-B15 SC300-300BG KP-B16 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | Export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Passenger And Material Hoist | Application | Vertical Transportation |
|---|---|---|---|
| Design | Modular And According To European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009 | Material | Q345B Cool Roll Steel Plate |
| Motor Control | VFD | Feature | Over Voltage Protection |
| Highlight | rack & pinion hoist,3000KG Passenger Hoist |
||
Product Description

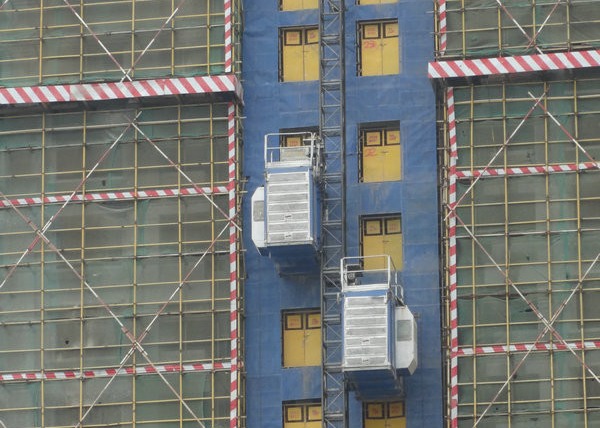

Over Voltage Protection 3000Kg Load Passenger And Material Hoist
Passenger And Material Hoist Introduction :
Construction hoist is mainly used to transport people or goods to multistoried building.Buwidely applies to such construction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc.
Construction lifter has such advantages as steady property, safety, reliability, flexible carrying, and good adaptability, etc., improves working efficiency, and can reduce working intensity.
Due to the frequency conversion elevator using computeraided design,configuration of frequency conversion device, so compared with the traditional construction lifter, smooth starting and stopping, effectively reduce the wastage of the parts, prolong service life, it has a high transmission efficiency, beautiful shape, light structure, tear open outfit is convenient,safe and reliable, strong applicability, wide range of USES, etc.
Passenger And Material Hoist Features and Advantages
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
Passenger And Material Hoist Technical Data
| Item & Article No. | SC300BG, KP-B15; SC300/300BG, KP-B16 Passenger And Material Hoist |
| Payload capacity | 3,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | Frequency Control |
| Engine power | 3x23 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
