CE VFD Control 3000KG Construction Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Passenger and material hoist SC300BG MP-B15 SC300/300BG MP-B16 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 set per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Material Hoist | Certificate | CE Approved |
|---|---|---|---|
| Material | Q345B Steel | Motor Control | VFC (Variable Frequency Control) |
| Production | As Per EN 12159:2012, EN 60204-1:2006/A1:2009 | Color | Any Color Available |
| Highlight | VFD Construction Material Hoist,3T Construction Material Hoist |
||
Product Description
CE Approved VFD Control Construction Material Hoist
Construction Material Hoist Features
1. Imported bearing, enameled cable and oil sealing etc. could be adopted for the driving system of the hoists.
2. Steel structure is made of high quality material from domestic famous brand, rack and gear is made of special material which has been heat treated and surface hardened to ensure the soundness and endurance of the equipment.
3. The most advanced VFD not only can control the hoist speed from 0 to 100m/min, but also have current-limiter, which means that the other construction machines working onsite will not be affected too much when the hoist starts up, and decrease the harmful effects to the hoist structure due to frequent starts and stops.
4. The system also has over-voltage protection, over-low voltage protection, over-current, overload and stall-preventing functions.
5. Brand-name electric parts, e.g. Schneider,Siemens, Omron, Mitsubishi and LG etc. are applied to ensure the equipment works steadily.
6. An exclusive software developed by us has been applied to the system, makes the operation safer and more reliable.
7. Production process is complied with ISO9001: 2000 quality management system.
8. CE certified.
9. Choose CABR/M, makes you feel at ease and efficient in the course of construction.
Construction Material Hoist Technical Data
| Item & Article No. | SC300BG, MP-B15; SC300/300BG, MP-B16 Construction Material Hoist |
| Payload Capacity | 3000KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 3x23 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |

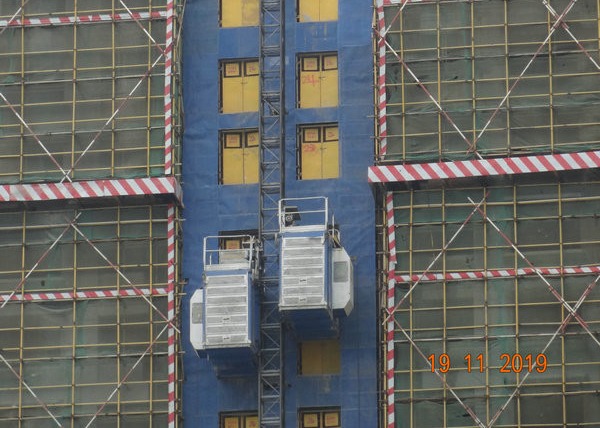

Construction Material Hoist Picture
