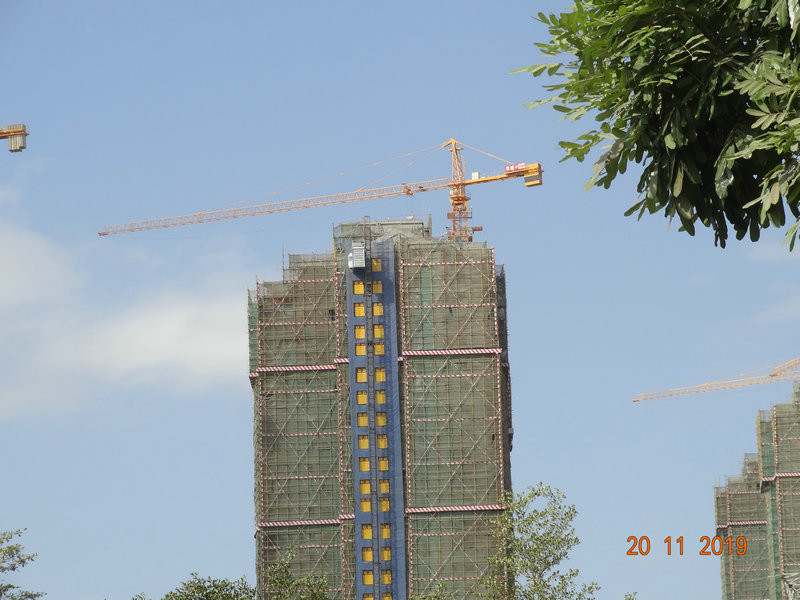

Compact Rack And Pinion 60M / Min Passenger And Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200BG, SC200/200BG, KP-B11, KP-B12 |
| Minimum Order Quantity | 1 set |
| Price | in USD |
| Packaging Details | Export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Passenger And Material Hoist | Application | Vertical Transportation Of Man And Materials In Construction Site Or Building Site, Bridges, Chimney, Plants, Etc.. |
|---|---|---|---|
| Design | Compact Design | Material | Q3145B |
| Finishing | Sandblasting And Painted, Galvanised | Speed | 60 M/Min |
| Highlight | rack and pinion hoist,60m/min Passenger Material Hoist |
||
Product Description
Compact Design 60 M/Min Passenger And Material Hoist
Passenger And Material Hoist Features
1. It is equipped with fully safety devices to guarantee the safe working;
2. Stable running and comfortable adaptability;
3. The transmission system adopts two-drive motors and three-drive motors. Planar double-eveloping worm gear reducer is adopted ensuring the high efficiency, max payload and long service life;
4. Simple electrical control system, easy operation and convenient maintenance withlow failure rate.
Passenger And Material Hoist Parameters
| Item & Article No. | SC200BG, KP-B11; SC200/200BG, KP-B12 |
| Payload Capacity | 2,000KG per Cage |
| Lifting speed | 0–60 meter/minute. |
| Max. lifting height | 450 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 3x15 KW per Cage |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
