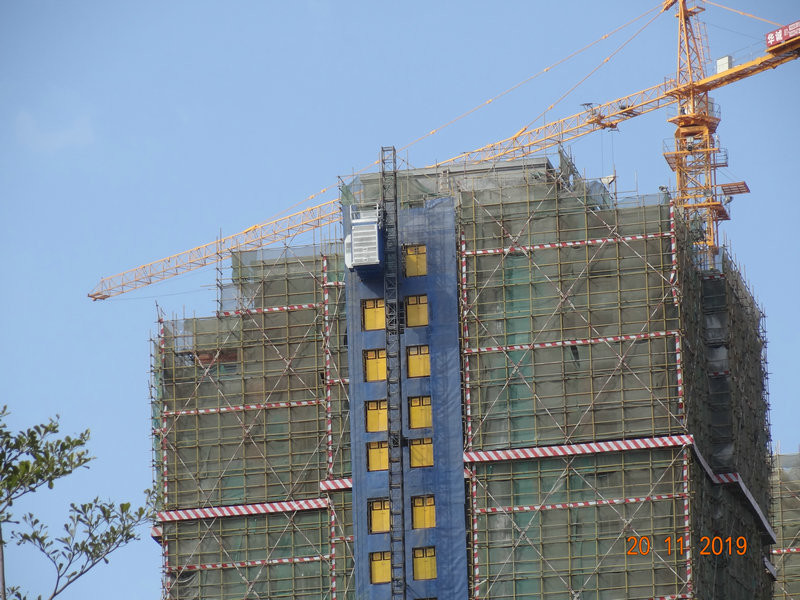

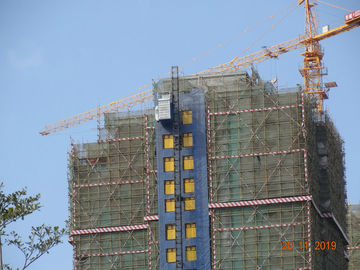

Building Site 450m Rack & Pinion Personnel And Materials Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Passenger and material hoist rack and pinion SC200BG MP-B11 SC200/200BG MP-B12 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Personnel And Materials Hoist | Application | Building Site |
|---|---|---|---|
| Design | According To European Regulation | Material | Q345B Steel |
| Processing | Processed By CNC Machines In Tool Fixtures | Color | Customized |
| Highlight | rack & pinion hoist,450m Personnel Materials Hoist |
||
Product Description
Building Site Q345B Steel Personnel And Materials Hoist
Personnel And Materials Hoist Introduction
1. All Production Line adopt special fixture, mould, gauge made by us to ensure all detailed size.
2. Select high quality raw material from China Bao Steel Group, other like motors ,reducers, gearbox, safety device with low noise, electrics is schneider or Korea repute brand with reliable quality
3. Special design,compact and reasonable structure,easy to installation and adjustment.
4. Each equipment should be test and make record in Factory, all details will be adjust like motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section erection test to ensure the completed equipment run well when take into use.
Personnel And Materials Hoist Configuration
There is the additional 'C' door at cage side for convenient loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Personnel And Materials Hoist Technical Data
| Item & Article No. | SC200BG, MP-B11; SC200/200BZ, MP-B12 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 3x15 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
