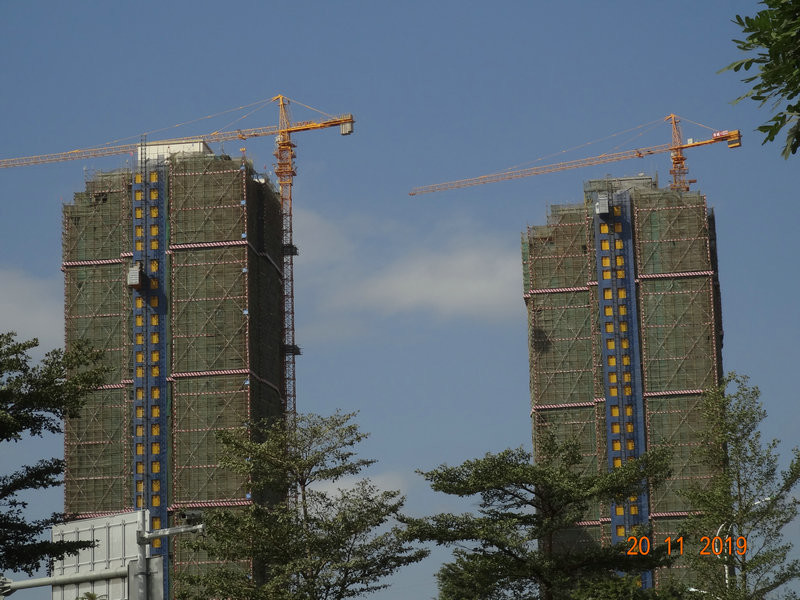

450m Vertical Transport VFD Passenger And Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Passenger and material hoist rack pinion SC200BG MP-B09 SC200/200BG MP-B10 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | Export package |
| Delivery Time | 25-30 days per month |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Passenger And Material Hoist | Application | Vertical Transport |
|---|---|---|---|
| Design | According To European Regulation | Material | Q345B Steel |
| Drive Unit | VFD Drive | Processing | Processed By CNC Machines |
| Highlight | VFD Passenger Material Hoist,450m Passenger Material Hoist |
||
Product Description
Vertical Transport VFD Drive Passenger And Material Hoist
Passenger And Material Hoist dvantage
1. Adopting advanced technology both at home and abroad,SC series construction elevator is novel in design,resonable in structure,simple in operation,covenient in assembly and disassembly,safe and reliable in working.
2. The unit incorporates famous brand electric components and main parts in transmission mechanism.The steel structure is made of high-quality steel material and welded with CO2 gas shield welding.Surface paint is made with imported raw materials in brmiant ,long lasting colors.
3. The unit is provided with reliable safety interlock devices,safety switch,breakage protection switch,upper and lower limits and limit switches ,etc,Progressive dropping safety devices and safety protection hook are provided.
4. The safety design and configuration fully comply to national standards.
Passenger And Material Hoist Technical Data
| Item & Article No. | SC200BG, MP-B09; SC200/200BG, MP-B10 Passenger And Material Hoist |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x23 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
