Construction Site 450m Passenger And Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200(BZ) KP-B07, B08 |
| Minimum Order Quantity | 1 unit |
| Price | Negocitate |
| Packaging Details | export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 set per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Passenger And Material Hoist | Applying Location | Construction Site, Plants, Etc. |
|---|---|---|---|
| Material | Q345B Cool Roll Steel Plate | Processing Procedure | Processed By CNC Machines In Tool Fixtures. |
| Finishing | Paint, Galvanised | Usage | Construction Site |
| Highlight | 450m Construction Site hoist,2000kg Construction Site hoist |
||
Product Description
Construction Site FC Motor Control Passenger And Material Hoist
Passenger And Material Hoist Features and Advantages
·PLC construction lifts.
·Low, medium, and high-speed variable frequency construction lifts.
·Special purpose construction lifts, such as power plant cold water tower construction lifts, mini rack construction lifts for tower crane, and mine construction lifts.
·Inclined construction lifts.
·Small rack observation lift.
·High-level test bed maintenance lift.
·Other OEM type rack and pinion vertical lift.
Passenger And Material Hoist Standard Configuration
There is a electrical small crane available to facilitate the assembly of columns and doors on the floors.
Available in single or twin hoist cage configuration.
Frequency control makes the construction hoists starting and stopping very smoothly, with low starting current and much less wear and tear.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp
Passenger And Material Hoist parameters
| Technical Data | KP-B07, B08 |
| Payload Capacity | 2000kg |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 450m |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | FC control |
| Engine Power | 2x15 kw |
| Gearbox | Helical Reducer |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack Module | 8 |

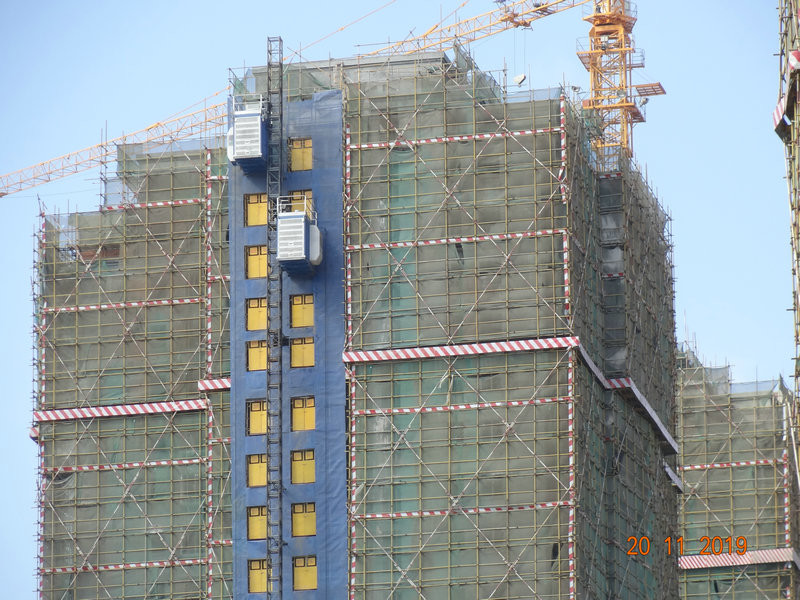

Passenger And Material Hoist Pictures
