Cold Roll Steel Plate 1 Ton Passenger And Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200(BD) KP-B02 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | Suitable for Export |
| Delivery Time | 30 days after receipt of down payment or L/C |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Passenger And Material Hoist | Model | SC200(BD) KP-B02 |
|---|---|---|---|
| Design | According To European Standard | Material | Cold Roll Steel Plate |
| Production | CNC Machines, Laser, Robots In Assembly Line. | Finishing | Sandblasting And Painted, Galvanised |
| Highlight | 1 Ton Material Hoist,1T Passenger Hoist |
||
Product Description

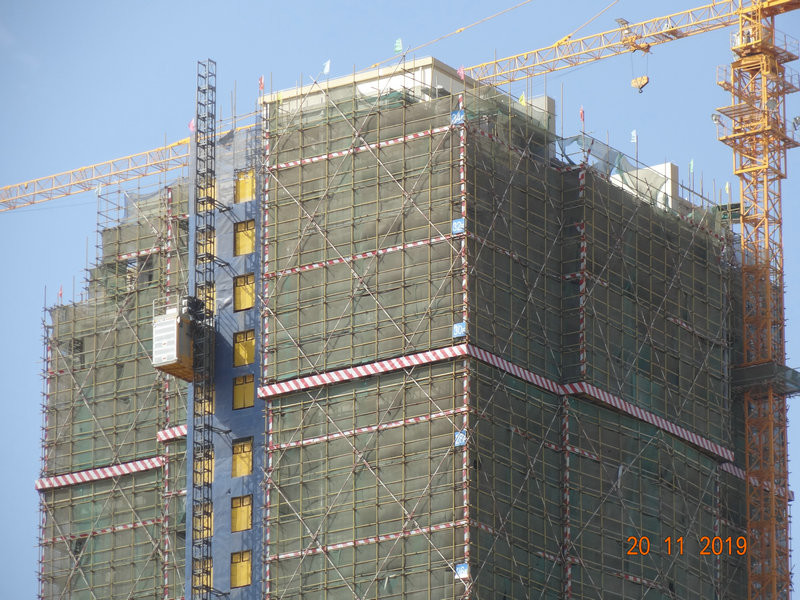

Cold Roll Steel Plate 1 Ton Passenger And Material Hoist
Passenger And Material Hoist Major Components:
A. Base Frame
B. Base Level Enclosure
C. Mast
D. Cage
E. Driving Device
F. Electrical System
G. Jib Attachment
H. Mast Tie
I. Cable Guiding Device
Passenger And Material Hoist Techincal Data
| Technical Data | KP-B02 |
| Payload capacity | 1000kg |
| Lifting speed | 0–54 m/min. |
| Max. lifting height | 250/400 m* |
| Cage quantity | 2 cages |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x2x15 kw |
| Gearbox | Helical reducer, Pieli brand |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
WARRANTY POLICY:
15 Months From The Date Of Bill Of Lading Or 12 Months From The Date Of Commissoning Whichever Is Earlier.
Warranty Include Motors, Reducers And VFD. Wear Parts Not Included.
Warranty Is Limited To Any Manufacturing Defects And It Does Not Include Defects Caused Due To Mishandling / Accidents Etc.
However Warranty Is Not Applicable On Electrical Contractors And Fuses.
