Man Material Transportation 3 Doors Rack & Pinion Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Rack and pinion hoist man and material lift SC200BG MP-B11 SC200/200BG MP-B12 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rack & Pinion Hoist | Application | Man / Material Transportation |
|---|---|---|---|
| Material | Q345B Cool Roll Steel Plate | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Motor Control | VFC (Variable Frequency Control) | Doors | 3 Doors |
| Highlight | Rack & Pinion Man Hoist,Rack & Pinion Material Hoist |
||
Product Description

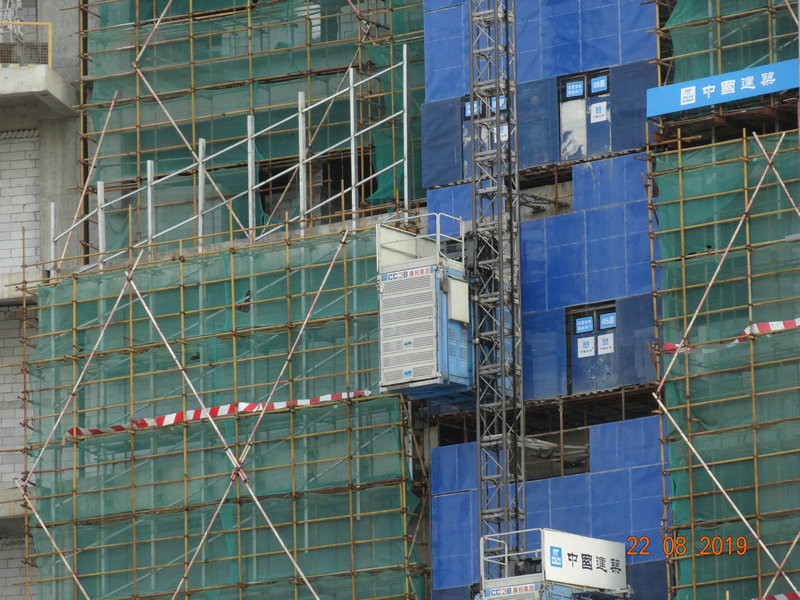

Man / Material Transportation 3 Doors Rack & Pinion Hoist
Rack & Pinion Hoist advantage
1. Adopting advanced technology both at home and abroad,SC series construction elevator is novel in design,resonable in structure,simple in operation,covenient in assembly and disassembly,safe and reliable in working.
2. The unit incorporates famous brand electric components and main parts in transmission mechanism.The steel structure is made of high-quality steel material and welded with CO2 gas shield welding.Surface paint is made with imported raw materials in brmiant ,long lasting colors.
3. The unit is provided with reliable safety interlock devices,safety switch,breakage protection switch,upper and lower limits and limit switches ,etc,Progressive dropping safety devices and safety protection hook are provided.
4. The safety design and configuration fully comply to national standards.
Rack & Pinion Hoist Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Multiple choice of construction lifts car doors or ramps is available.
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
Rack & Pinion Hoist Technical Data
| Item & Article No. | SC200BG, MP-B11; SC200/200BZ, MP-B12 Rack & Pinion Hoist |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (Internal) | 1.5 m |
| Cage Length (Internal) | 3.2 m |
| Cage Height (Internal) | 2.35 m |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Drive Unit | VFD (Variable Frequency Drive) |
| Engine power per cage | 3x15 KW |
| Gearbox | Helical Reducer |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
