TUV Construction 60 M / Min Rack And Pinion Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200(BD) |
| Minimum Order Quantity | 1 unit |
| Delivery Time | 30 day |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 unit per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Vertical Transportation Of Man And Materials | Color | Customized |
|---|---|---|---|
| Finishing | Sand Blasting And Paint, Galvanising | Proof | TUV |
| Item | Rack And Pinion Hoist | Speed | 60 M/Min |
| Highlight | 60 M / Min Construction Hoist,Construction Rack And Pinion Hoist |
||
Product Description

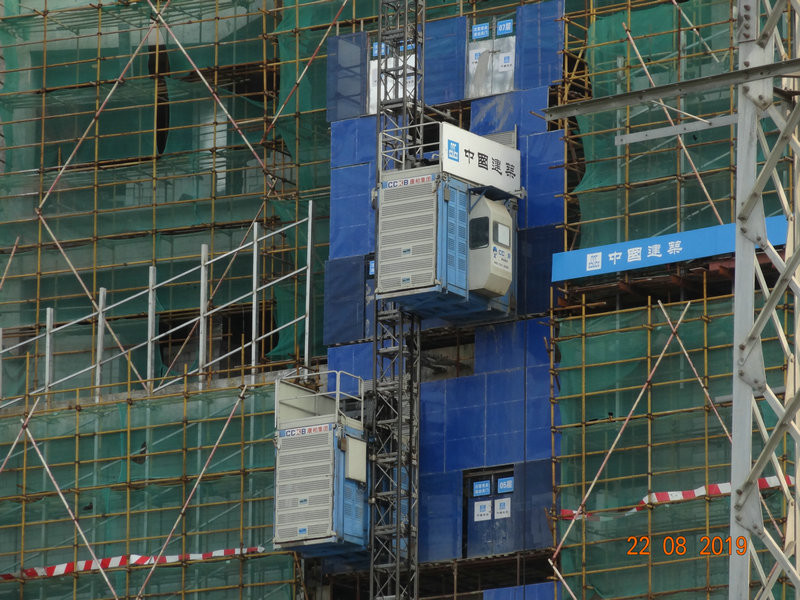

TUV Approved Construction 60 M/Min Rack And Pinion Hoist
Rack And Pinion Hoist Advantage
1. Adopting advanced technology both at home and abroad,SC series construction elevator is novel in design,resonable in structure,simple in operation,covenient in assembly and disassembly,safe and reliable in working.
2. The unit incorporates famous brand electric components and main parts in transmission mechanism.The steel structure is made of high-quality steel material and welded with CO2 gas shield welding.Surface paint is made with imported raw materials in brmiant ,long lasting colors.
3. The unit is provided with reliable safety interlock devices,safety switch,breakage protection switch,upper and lower limits and limit switches ,etc,Progressive dropping safety devices and safety protection hook are provided.
4. The safety design and configuration fully comply to national standards.
Rack And Pinion Hoist Features
Motors are FC controlled make the lifts start/stop smoothly.
Adopt Schneider inverters.
Flap Type Exit Door as loading/unloading ramp are availble.
Strengthened lifts car frame, extremely strong cage make the lifts durable.
Lifts car roof made of steel plate and the edges are totally welded.
Rack And Pinion Hoist Production
Main steel channel of the cage frame are enlarged and thickened. Cage roof edges are totally welded by robots.
Main steel structure parts are made of cold rolled steel plates and processed by CNC machines in tool fixtures.
Rack And Pinion Hoist Parameters
| Technical Data | KP-B09, KP-B10 |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450 m |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | FC control |
| Engine Power | 2x23 kw/87Hz |
| Gearbox | Helical reducer |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of Mast | square column 650*650 mm with bolted rack |
| Length Mast Section | 1.508 m |
| Rack module | 8 |
