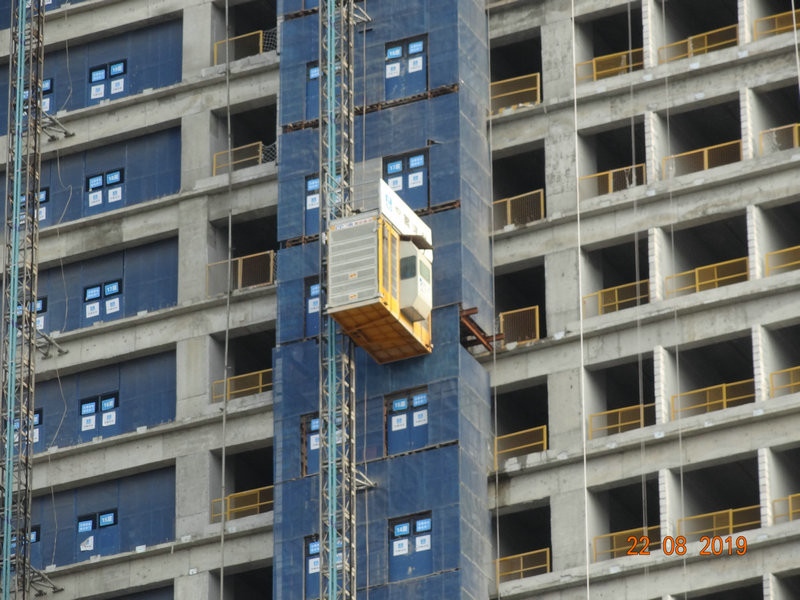

VFD Drive Motor 46 M / Min Rack & Pinion Building Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Rack and pinion hoist SC320(BZ) KP-B17 SC320/320(BZ) KP-B18 |
| Minimum Order Quantity | 1 set |
| Price | in USD |
| Packaging Details | export package |
| Delivery Time | 250-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Building Material Hoist | Application | Transportation Of Man And Material At Building Site |
|---|---|---|---|
| Material | Q345B Cool Roll Steel Plate | Processing | Cut By Laser, Processed By CNC Machines In Tool Fixtures |
| Motor | VFD Drive | Color | Yellow |
| Highlight | 46 M / Min Material Hoist,Building rack & pinion hoist |
||
Product Description
VFD Drive Motor 46 M/Min Building Material Hoist
Building Material Hoist Main Features
1. A Master switch On the operation board: When the button closed, unexpected action to other buttons can not let cabin working.
2. Anti-falling safety device
3. Mechanical inter-locking door: when the cabin running it can close by itself from protecting people from dropping.
4. Overload calling device.
5. upper and lower travel limit: They can limit the cabin go over the top mast.
6. The top mast section have no rack in order to limit the cabin overrunning and dropping.
7. Manual button: You can operate the button to let the cabin go down when interruption of power supply.
8. Emergency switch: When the cabin losing control and over-running, you can operate the button.
Building Material Hoist Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Building Material Hoist Technical Data
| Item & Article No. | SC320(BZ) KP-B17, SC320/320(BZ) KP-B18 Building Material Hoist |
| Payload capacity | 3,200 kg per cage |
| Lifting speed | 0–46 m/min. |
| Max. lifting height | 450 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 3x15 kw per cage |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast section | square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
