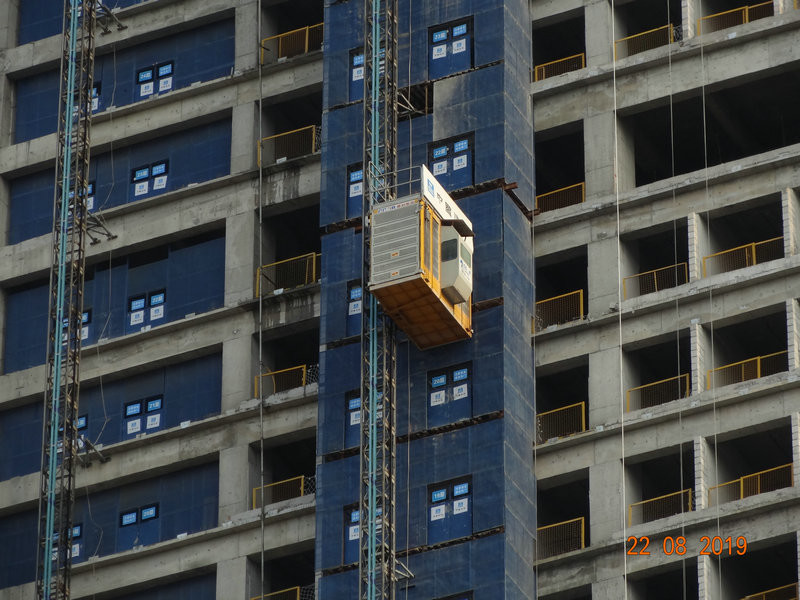

Frequency Control High Safety Bridges Rack And Pinion Hoist
| Model Number | Rack and pinion hoist construction elevator SC200BG MP-B09 SC200/200BG MP-B10 |
|---|---|
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rack And Pinion Hoist | Application | Construction Sites, Plants, Bridges |
|---|---|---|---|
| Design | According To European Regulation | Material | Q345B Steel |
| Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line | Feature | High Safety |
| Highlight | High Safety rack & pinion hoist,Rack And Pinion Bridges Hoist |
||
Product Description
Frequency Control High Safety Rack And Pinion Hoist
Rack And Pinion Hoist Description
Double cage passenger Materials building Construction hoist is specially used for lifting passengers and materials under construction of high-rise buildings, tower, bridges, plant, chimney, and so on like that outdoor.Compared with traditional building hoists, Jiuhong construction elevator is more attractive, lighter, easier to handle, safer, more applicable, and popular. Depending on special needs of regular or irregular sections, the lifting capacity can reach up to 4tons, and the running speed can reach 28~33m/min.Moreover, VVVF speed regulation and PLC enable 0~68 limitless speed, automatic layer selecting and leveling as required.
Rack And Pinion Hoist Features and Advantages
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* The additional big size third door at the cage side let the users to use fork trucks to load/unload extremely heavy and big size materials.
* Easy access to electrical panels of elevator for maintenance.
* Certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
* The elevators are equipped with full set of safety facilities, including centrifugal brake, limit switches, Electromechanical interlocks.
* Frequency control unit (FC), with closed-loop, which gives the passenger and material hoists very smooth starting and stopping with low starting current and less wear and tear.
Rack And Pinion Hoist Certificate
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Rack And Pinion Hoist Technical Data
| Item & Article No. | SC200BG, MP-B09; SC200/200BG, MP-B10 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (Internal) | 1.5 m |
| Cage Length (Internal) | 3.2 m |
| Cage Height (Internal) | 2.35 m |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x23 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
