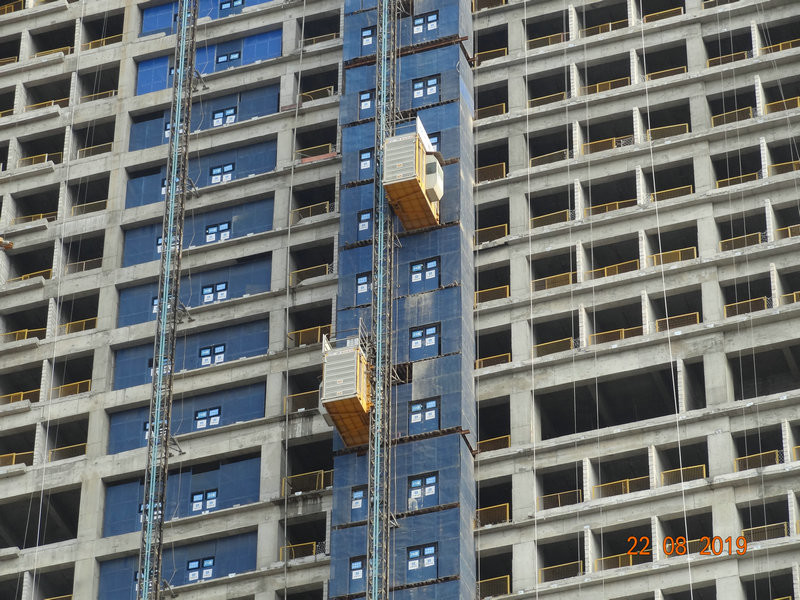

Rack & Pinion 60 Meter / Minute Construction Hoist Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200BG KP-B11, SC200/200BG KP-B12 |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Hoist Elevator | Application | Construction Site, Building Site, Bridges, Chimney, Plants, Etc. |
|---|---|---|---|
| Feature | Smooth Running | Material | Q345B Cool Roll Steel Plate |
| Production | Processed By CNC Machines, Laser, Robots In Assembly Line. | Finishing | Sandblasting And Painted, Galvanised |
| Highlight | 60 Meter / Minute Construction Elevator,Rack & Pinion Elevator |
||
Product Description
Smooth Running 60 Meter / Minute Construction Hoist Elevator
Construction Hoist Elevator Quick detail
Building Materials lifts are suitable for inland cruise ships, freighters, ocean cruise ships, container ships, tankers, and large buildings on water, oil rigs, marine surveillance vessels, warships and scientific research vessels. Adopt classification society related elevator standard and pass classification society inspection.
Construction Hoist Elevator Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.
Construction Hoist Elevator Configuration
There is a electrical small crane available to facilitate the assembly of columns and doors on the floors.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with Interlock.
Construction Hoist Elevator Parameters
| Item & Article No. | SC200BG, KP-B11; SC200/200BG, KP-B12 |
| Payload Capacity | 2,000KG per Cage |
| Lifting Speed | 0–60 meter/minute. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5((Width)*2.35(Height) meter |
| Motor Power | 3x15 KW per Cage |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*55KW per Cage |
| Gearbox | PIELI Helical Gearbox |
| Anti-drop Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
