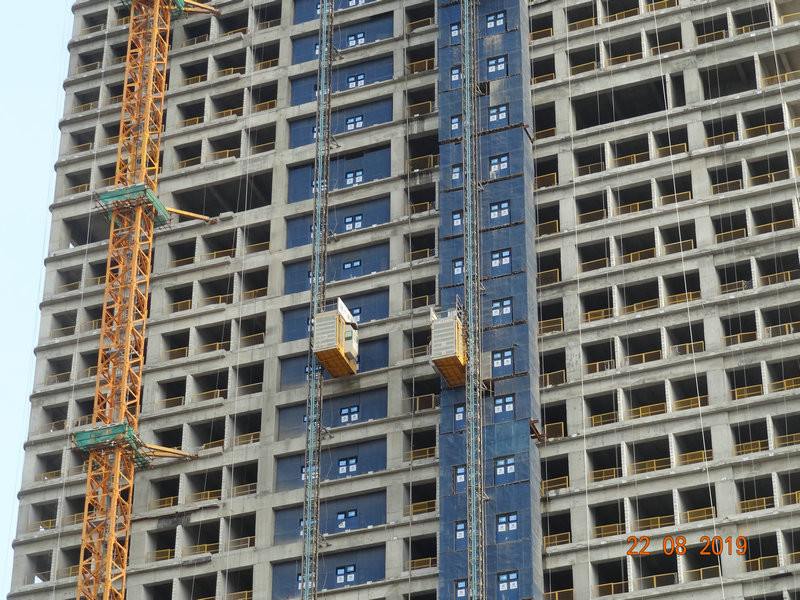

Multiple Doors / Flaps Choice Building Rack And Pinion Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200BD |
| Minimum Order Quantity | 1 unit |
| Price | negotiate |
| Delivery Time | 30 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rack And Pinion Hoist | Material | Q345B Cool Roll Steel Plate |
|---|---|---|---|
| Processing Equipment | CNC Machine, Robot | Doors | Multiple Doors |
| Design | Modular | Spare Parts | Universal And Interchangeable |
| Highlight | Rack And Pinion Building Hoist,Modular Rack And Pinion Hoist |
||
Product Description
Multiple Doors / Flaps Choice Building Rack And Pinion Hoist
Rack And Pinion Hoist Description
To fulfill the requirements of customers, our Mature-tech building material hoist can be designed with guide rails of regular or irregular sections. Its elevating capacity varies from 1000kg to 3800kg and the operating speed ranges from 0m/min to 38m/min. If equipped with VVVF speed controller and PLC, this product is capable of realizing continuously variable speed control from 0 to 96m/min, automatic floor selecting and deceleration for normal stop. Apart from its excellent technical performance, our Mature-tech building material hoist integrates such features as below.
Rack And Pinion Hoist Features
* Adopt world famous electrical parts.
* Motors are with FC control.
* full set of safety facility, including centrifugal brake, limit switches
* Be equipped with a frequency control unit (FC), with closed-loop.
Rack And Pinion Hoist Production
The Q345 cool roll steel plates are cut by Laser, processed by CNC machines, welded by robots.
Main steel channel of cage frame is enlarged and thickened, which made of Q345B cool rolled steel plate.
tool fixtures.
Rack And Pinion Hoist Parameters
| Technical Data | KP-B09, KP-B10 |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450 m |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | FC control |
| Engine Power | 2x23 kw/87Hz |
| Gearbox | Helical reducer |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of Mast | square column 650*650 mm with bolted rack |
| Length Mast Section | 1.508 m |
| Rack module | 8 |
