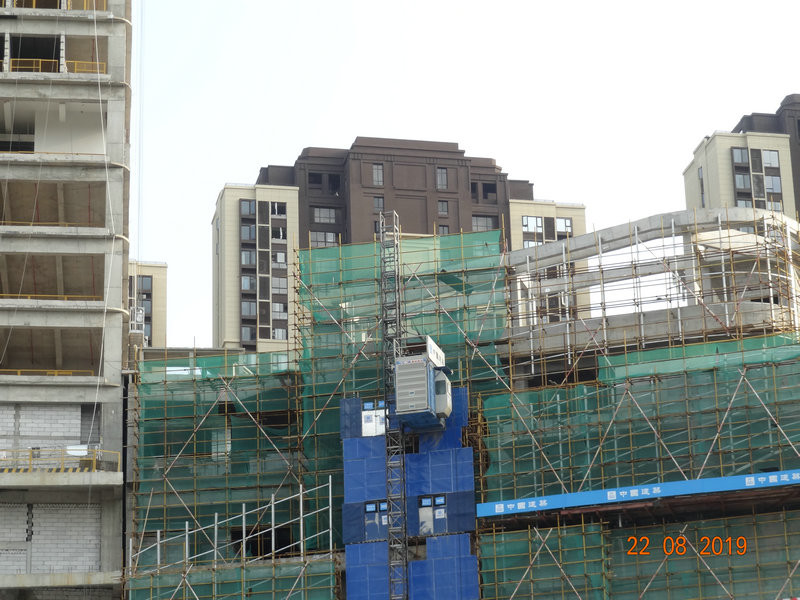

Q345B Steel Man Material Rack And Pinion Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200BG KP-B11, SC200/200BG KP-B12 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Man Material Hoist | Application | Construction Site, Building Site, Bridges, Chimney, Plants, Etc. |
|---|---|---|---|
| Feature | Low Energy Consumption | Material | Q345B Steel Plate |
| Production | Processed By CNC Machines, Laser, Robots In Assembly Line. | Finishing | Sandblasting And Painted, Galvanised |
| Highlight | Man Material Rack Pinion Hoist,steel Rack Pinion Hoist |
||
Product Description
Low Energy Consumption Q345B Steel Man Material Hoist
Steel Man Material Hoist Introduction
1). Monitor control unit
2). Weight limit device
3). Fall protection device
4). Microcomputer speed device
5). GPS fixing system
6). Floor select system
7). Floor calling system
8). Floor pausing protection device
Steel Man Material Hoist Configuration
There is a electrical small crane available to facilitate the assembly of columns and doors on the floors.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
Steel Man Material Hoist parameters
| Item & Article No. | SC200BG, KP-B11; SC200/200BG, KP-B12 |
| Payload Capacity | 2,000KG per Cage |
| Lifting Speed | 0–60 meter/minute. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5((Width)*2.35(Height) meter |
| Motor Power | 3x15 KW per Cage |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*55KW per Cage |
| Gearbox | PIELI Helical Gearbox |
| Anti-drop Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
