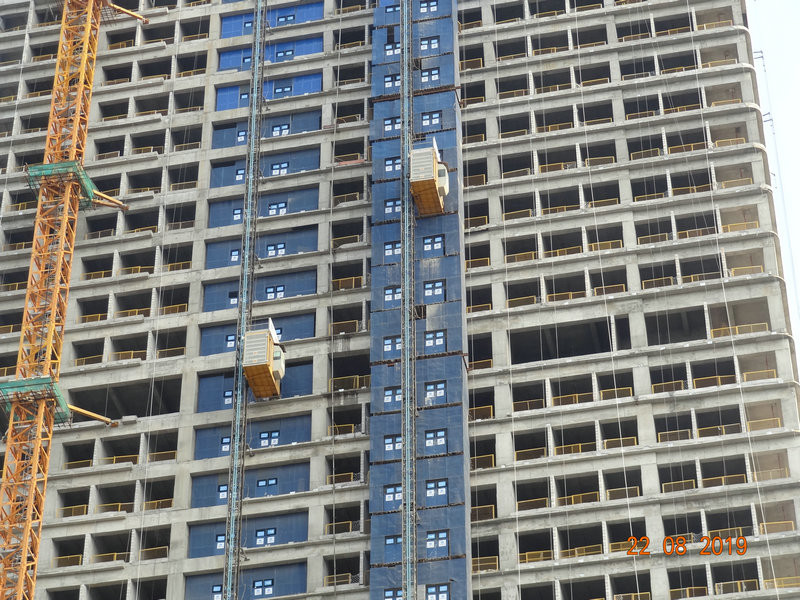

Construction Site 3000Kg Rack And Pinion Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Rack and pinion hoist SC300BG KP-B15 SC300/300BG KP-B16 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rack And Pinion Hoist | Application | Construction Site, Factory |
|---|---|---|---|
| Feature | Energy Saving | Design | According To European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009. |
| Production | As Per EN 12159:2012, EN 60204-1:2006/A1:2009. | Material | Q345B |
| Highlight | Construction Site Hoist 3000Kg,Construction Site Rack Pinion Hoist |
||
Product Description
Energy Saving 3000Kg Rack And Pinion Hoist
Rack And Pinion Hoist Introduction
1, Conversion driving smooth starting, high efficiency and energy saving, low energy consumption and environmental protection, low mechanical wear and tear;
2, Optional for single cage and twin cage, without counter weight;
3, Optional for kinds of tie-in type;
4, Low durability of materials : strength of high strength steel is increased and reduced the weight of hoisting cage;
5, Many other optional configuration and function.
Rack And Pinion Hoist Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
Main structure frame are made of 16Mn and Q345 high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Rack And Pinion Hoist Parameters
| Item & Article No. | SC300BG, KP-B15; SC300/300BG, KP-B16 |
| Payload capacity | 3,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | Frequency Control |
| Engine power | 3x23 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
