Construction 450m Personnel And Materials Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Rack and pinion hoist SC320(BZ) KP-B17 SC320/320(BZ) KP-B18 |
| Minimum Order Quantity | 1 set |
| Price | in USD |
| Packaging Details | export package |
| Delivery Time | 250-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rack And Pinion Hoist | Application | Construction |
|---|---|---|---|
| Material | Cool Roll Steel Plate | Processing | Cut By Laser, Processed By CNC Machines In Tool Fixtures |
| Motor | VFD | Color | Customized |
| Highlight | 450m Personnel Hoist,450m Construction Hoist |
||
Product Description

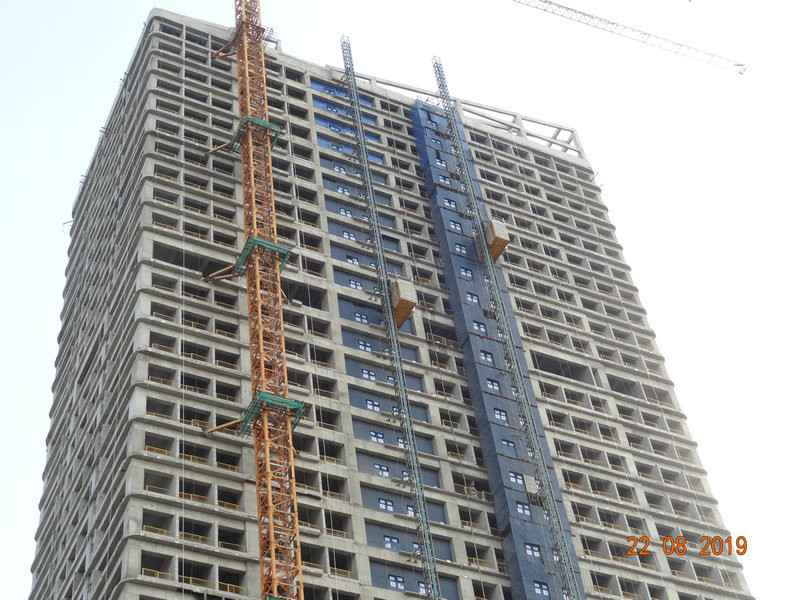

Construction Frequency Conversion 450m Rack And Pinion Hoist
Rack And Pinion Hoist Features
1. It is equipped with fully safety devices to guarantee the safe working;
2. Stable running and comfortable adaptability;
3. The transmission system adopts two-drive motors and three-drive motors. Planar double-eveloping worm gear reducer is adopted ensuring the high efficiency, max payload and long service life;
4. Simple electrical control system, easy operation and convenient maintenance withlow failure rate.
Rack And Pinion Hoist Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Rack And Pinion Hoist Technical Data
| Item & Article No. | SC320(BZ) KP-B17, SC320/320(BZ) KP-B18 Rack And Pinion Hoist |
| Payload capacity | 3,200 kg per cage |
| Lifting speed | 0–46 m/min. |
| Max. lifting height | 450 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 3x15 kw per cage |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast section | square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
