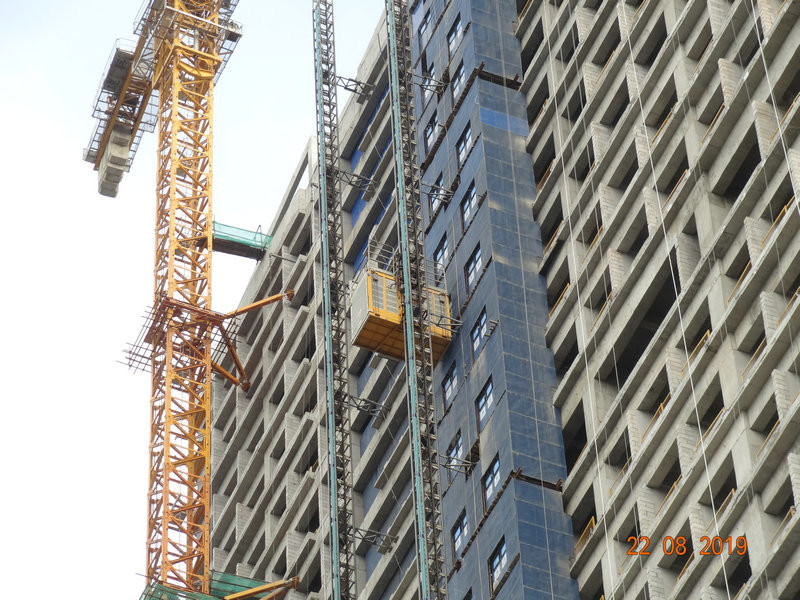

Heavy Duty 3 Doors Building Site Rack And Pinion Lift System
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Rack and pinion hoist man and material lift SC200BG MP-B11 SC200/200BG MP-B12 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rack And Pinion Lift System | Application | Vertical Transportation At Building Site |
|---|---|---|---|
| Material | Q345B Cool Roll Steel Plate | Type | Heavy Duty |
| Motor Control | VFC (Variable Frequency Control) | Doors | 3 Doors |
| Highlight | Heavy Duty Rack Pinion Lift,3 door Rack Pinion Lift |
||
Product Description
Heavy Duty 3 Doors Rack And Pinion Lift System
Rack And Pinion Lift System Type
1. Normal building hoist
2. High-speed frequency conversion hoist
3. Multifunctional building hoist
4. Curved & Inclined hoist
5. Double pillar Heavy duty hoist
6. Mini Hoist
Rack And Pinion Lift System Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Multiple choice of construction lifts car doors or ramps is available.
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
Rack And Pinion Lift System Technical Data
| Item & Article No. | SC200BG, MP-B11; SC200/200BZ, MP-B12 Rack And Pinion Lift System |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (Internal) | 1.5 m |
| Cage Length (Internal) | 3.2 m |
| Cage Height (Internal) | 2.35 m |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Drive Unit | VFD (Variable Frequency Drive) |
| Engine power per cage | 3x15 KW |
| Gearbox | Helical Reducer |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
