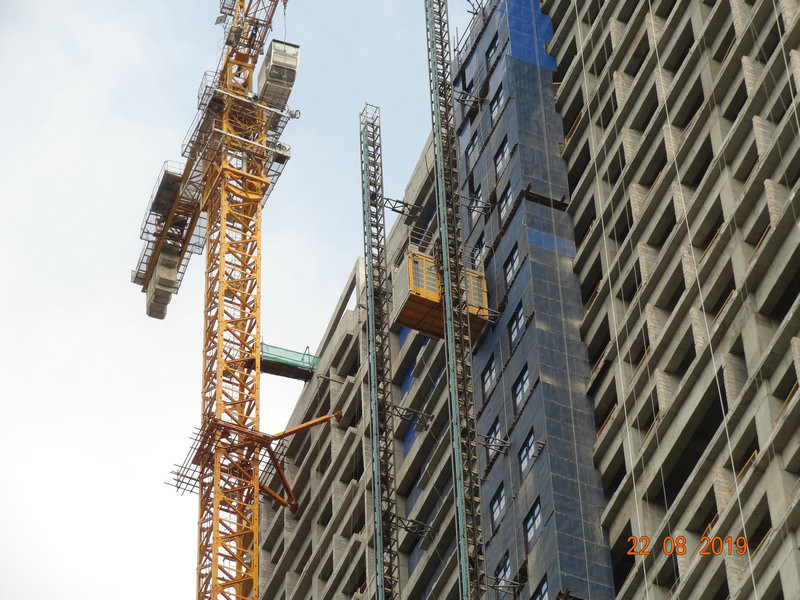

Twin Cage 2000KG Construction Site Rack And Pinion Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Rack And Pinion Hoist |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| NAME | Rack And Pinion Hoist | Application | Construction Site, Building Site, Bridges, Chimney, Plants, Etc. |
|---|---|---|---|
| Design | According To European Regulation | Cage | Twin Hoist Cage |
| Production | As Per European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009. | Capacity | 2,000 KG |
| Highlight | Rack Pinion Construction Site Hoist,2000KG Construction Site Hoist |
||
Product Description
Twin Hoist Cage 2,000 KG Rack And Pinion Hoist
Rack And Pinion Hoist Introduction
The overload capacity of Hollisworth building hoist can reach 4000kgs; the lifting speed can reach 36m/min, and the max. Erecting height can be as high as 450m. The hoists are widely used in construction site,power projects, metallurgical, mining, oil and chemical industries. Hollisworth also can design and produce the special kinds of lifting equipments upon the clients; requirements or special condition on the working site. We can produce the following kinds of building hoist:
Rack And Pinion Hoist Configuration
There is a small crane for conenient assembly of the construction lift.
There is the additional 'C' door at cage side for convenient loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED lamp
The construction material hoist cage roof doors are equipped with Interlock.
Rack And Pinion Hoist Technical Data
| Item & Article No. | SC200BD, MP-B05; SC200/200BD, MP-B06 Rack And Pinion Hoist |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–36 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x11 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
