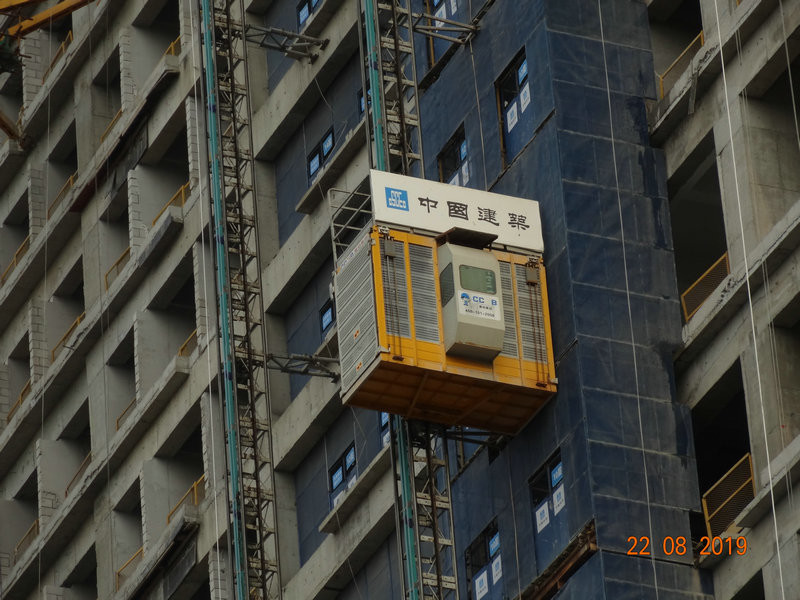

Frequency Conversion Factories Vertical Rack And Pinion Lift
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200(BD) |
| Minimum Order Quantity | 1 unit |
| Delivery Time | 30 day |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 unit per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rack And Pinion Lift | Application | Vertical Transportation Of Man And Materials |
|---|---|---|---|
| Color | Yellow | Finishing | Sand Blasting And Paint, Galvanising |
| Proof | TUV | Feature | High Speed |
| Highlight | Frequency Conversion Rack Pinion Lift,factories Rack And Pinion Lift |
||
Product Description
High Speed Frequency Conversion Rack And Pinion Lift
Rack And Pinion Lift Features
1.The technology from foreign advanced technology, excellent quality with stable and reliable performance.
2. Zero accident record
3. The products are processed by large-scale equipment, which is not only reliable in quality but also very beautiful in appearance
4. According to customer requirement to make OEM
5. Lifting speed can do low speed, Medium speed, and high speed.
6.more than 20 years experience.
Rack And Pinion Lift Production
Main steel channel of the cage frame are enlarged and thickened. Cage roof edges are totally welded by robots.
Main steel structure parts are made of cold rolled steel plates and processed by CNC machines in tool fixtures.
Rack And Pinion Lift Parameters
| Technical Data | KP-B09, KP-B10 |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450 m |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | FC control |
| Engine Power | 2x23 kw/87Hz |
| Gearbox | Helical reducer |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of Mast | square column 650*650 mm with bolted rack |
| Length Mast Section | 1.508 m |
| Rack module | 8 |
