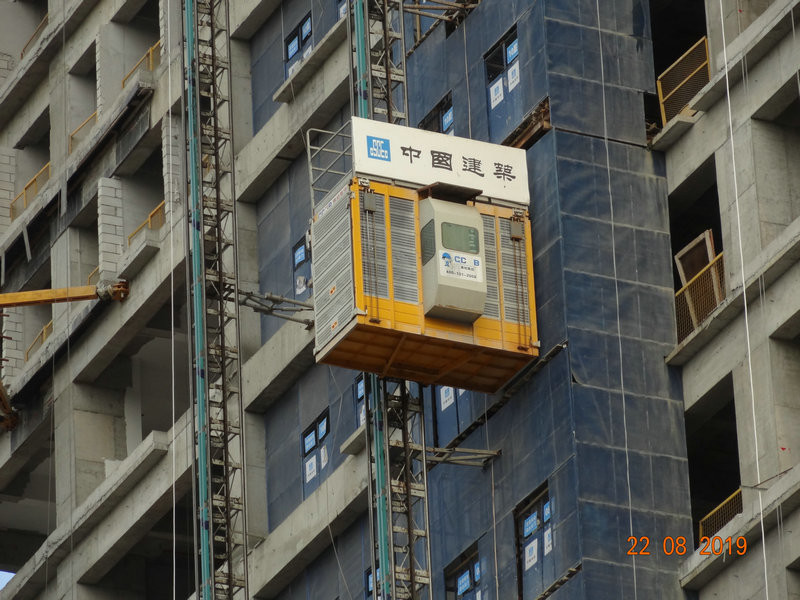

VFD Motor 46 M / Min Building Site Rack And Pinion Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Rack and pinion hoist SC320(BZ) KP-B17 SC320/320(BZ) KP-B18 |
| Minimum Order Quantity | 1 set |
| Price | in USD |
| Packaging Details | export package |
| Delivery Time | 250-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rack And Pinion Hoist | Application | Transportation Of Man And Material At Building Site |
|---|---|---|---|
| Material | Q345B Cool Roll Steel Plate | Processing | Cut By Laser, Processed By CNC Machines In Tool Fixtures |
| Motor | VFD | Control | VFD Control |
| Highlight | Rack Pinion Building Site Hoist,VFD Motor Rack Pinion Hoist |
||
Product Description
VFD Control 46 M/Min Rack And Pinion Hoist
Rack And Pinion Hoist Introduction
1. This product has no counter weight, dismantling easily and working safely;
2. The transmission system adopted three drive motors and three sets of reduction gears;
3. The mast sections of construction elevator are painted for four times. Also galvanized mast sections are available for customers;
4. The start electricity is smaller than the working electricity;
5. Quick-wear parts are free to give to customers and one-year warranty for the main mechanism.
Rack And Pinion Hoist Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Rack And Pinion Hoist Technical Data
| Item & Article No. | SC320(BZ) KP-B17, SC320/320(BZ) KP-B18 |
| Payload capacity | 3,200 kg per cage |
| Lifting speed | 0–46 m/min. |
| Max. lifting height | 450 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 3x15 kw per cage |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast section | square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
