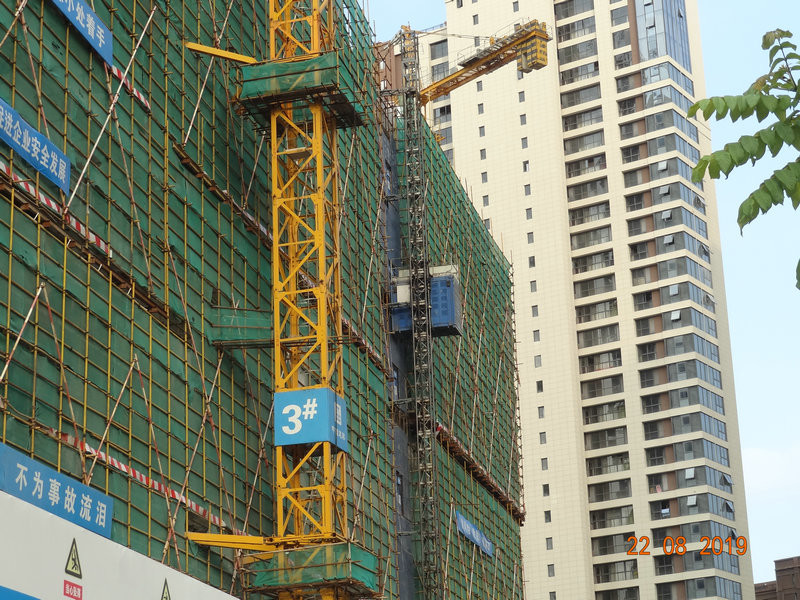

Construction Site 3000Kg Rack And Pinion Hoist

Construction Site 3000Kg Rack And Pinion Hoist

Rack And Pinion Hoist Introduction

1. It is equipped with fully safety devices to guarantee the safe working;

2. Stable running and comfortable adaptability;

3. The transmission system adopts two-drive motors and three-drive motors. Planar double-eveloping worm gear reducer is adopted ensuring the high efficiency, max payload and long service life;

4. Simple electrical control system, easy operation and convenient maintenance withlow failure rate.

Rack And Pinion Hoist Design

It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.

Multiple choice of construction lifts car doors or ramps is available.

Rack And Pinion Hoist Production and Materials

KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
Main structure frame are made of 16Mn and Q345 high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.

Rack And Pinion Hoist Parameters
