Rack Pinion Construction Lift VFD - With 'C' Door On Long Side Of Cage
| Place of Origin | Xiamaen, China |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200 |
| Minimum Order Quantity | 1 unit |
| Price | in USD |
| Packaging Details | A 40'HQ container can load a unit of 50 meter high hoist |
| Delivery Time | 25 days after receiipt of down payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | House Building, Bridge Building, Factories | Design | Modular Design |
|---|---|---|---|
| Work Mode | Mast Climbing | Drive Unit | Motor And Gearbox |
| Materials | Q355B Steel | Processing | CNC Machines, Robots |
| Highlight | VFD Rack Pinion Construction Lift,Rack Pinion Lift With C Door,VFD Rack And Pinion Hoist |
||
Product Description
Durable Rack Pinion Construction Lift VFD - With 'C' Door On Long Side Of Cage MP-B08L
Overview
Main parts are modular design and interchangeable. Motors are Frequency Control, so the machines start and stop smoothly.
Multi-function Control System, including functions of fault detect, display and alarm, etc. is optional.
Advantage Features
This hoist lift is modular designed and produced in the assembly line by CNC machine tools and robots.
Elevator parts and components are standardizing, universal and interchangeable.
Motors are Frequency Control, make the machine start and stop smoothly.
Available with Intelligent Control System, which includs functions of fault detect, display and alarm, and automatic car landing/stopping and floor selection.

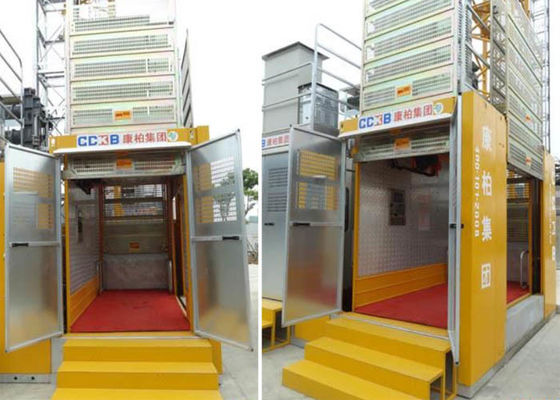

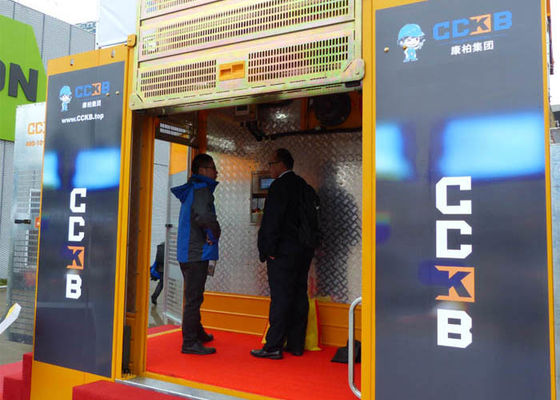

Additional 'C' door on the long side of car let the users can apply fork truck to load/discharge heavy materials.
Strong car structure using Q355B materials are very durable.
Galvanized steel plates are bolted to the car frame to be the car wall, the users can replace them in the case of damage.
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
| Item & Article No. | SC200/200BG, KP-B12 |
| Cage Nos. | Twin Cage |
| Cage Door | 3 doors per Cage |
| Payload Capacity | 2,000KG per Cage |
| Lifting Speed | 0–60 meter/minute with Full Load |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) meter |
| Motor Power | 3x15 KW per Cage |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*55KW per Cage |
| Gearbox | PIELI Helical Gearbox |
| Anti-drop Safety Device | Centrifugal Brake, SAJ40-1.6 |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack Modulus | 8 Modulus, 60 Teeth |
