SC200/200 Rack Pinion Hoist Lift 60m/Min 2 Ton VFD Temporary Construction Elevators
| Place of Origin | Xiamaen, China |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200 |
| Minimum Order Quantity | 1 unit |
| Price | in USD |
| Packaging Details | A 40'HQ container can load one cage and 50 meter mast |
| Delivery Time | 25 days after receiipt of down payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Applying Site | Construction Site, Building Site, Bridges, Chimney, Plants, Etc. | Work Mode | Mast Climbing |
|---|---|---|---|
| Drive Type | Rack And Pinion | Moto Control | VFC (Variable Frequency Control) |
| Design | Modular Design And EU Regulations | Material | Q355B Steel |
| Highlight | VFD Rack Pinion Hoist,Temporary Rack Pinion Hoist,2 Ton Rack Pinion Lift |
||
Product Description

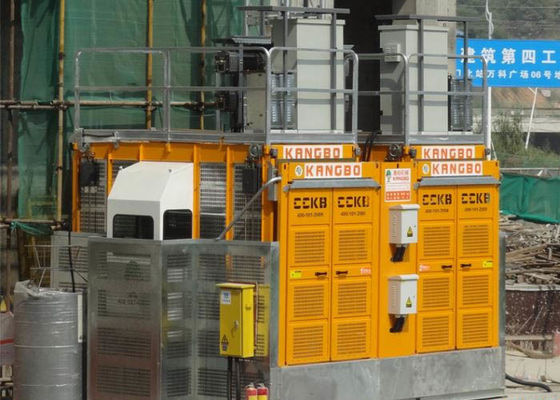

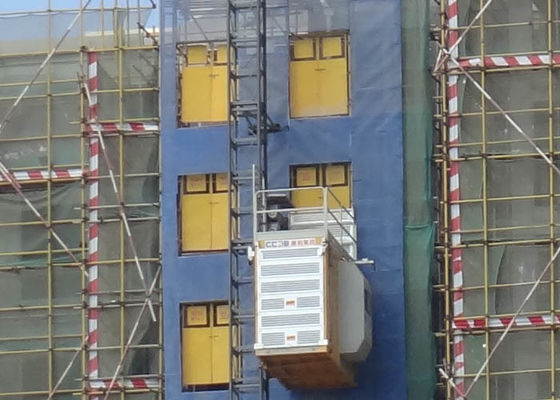

SC200/200 Rack Pinion Hoist Lift 60m/min 2 ton VFD Temporary Construction Elevators
Product Overview
The hoist drive devices and cages are generic and interchangeable because of the truly modular design and accurate processing.
Variable Frequency Drive make the hoists start smoothly with low current and less wear and tear.
Intelligent control System with fault detect, display and alarm, and automatic cage landing/stop and floor selection will be equipped as per users' request.
It is TUV certified according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Features of the hoist
* Energy-saving, high efficiency gear type reducers.
* Non-eccentric rollers for easy installation.
* A full steel plate welded cage roof, edges totally welded, no leakage in rainy season.
* Cage frame is made of bigger and stronger steel.
* Flap door as loading/unloading ramp is available..
* Be equipped with a frequency control unit (FC), with closed-loop.
* Easy access to electrical panels.
* Certified safety brake system and full set of safety measures.
| Technical Data | KP-B11, B12 |
| Payload capacity | 2,000 kg per cage |
| Lifting speed | 0–60 m/min with full loaded |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 3x15 kw |
| Gearbox | Helical reducer |
| Safety device type | Centrifugal brake, SAJ40-1.6 |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
